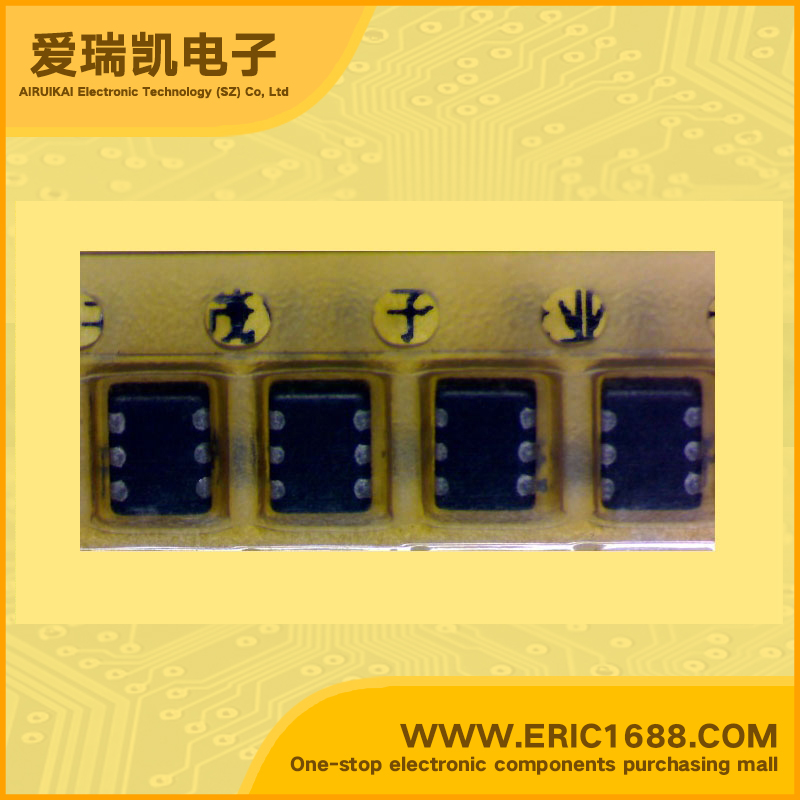

CDA6C05GTH TVS/ESD SOT23-6L marking
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | |
| 反向击穿电压VBR Breakdown Voltage | 52V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | |
| 峰值脉冲电流IPPm Peak Forward Surge Current | |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Reliable ESD protection of multiple high-speed signal lines.Features • Bi-directional ESD protection to IEC 61000-4-2 (level 4) • Suitable for uni- and bi-directional lines • Bi-directional ESD protection of four data lines and one supply line in a 3-fold array • Routes all ESD events, both positive and negative, safely to ground • Suitable for DC working voltages up to 5.6 V • Low capacitance: 10 pF maximum • USB 2.0 compliant • No derating of maximum ratings up to 85 °C • Surface mount package in SOT23-6L case size (inch case size 1012) • Extremely fast response time < 0.5 ns • Lead-free nickel barrier terminations suitable for lead-free soldering • RoHS-compatible Applications • Desktop and notebook computers • Peripherals • Portable handheld products (e.g. PDA) • Mobile communication • Consumer products (set top boxes, MP3 players, digital cameras, etc.) • Liquid crystal displays (LCD) / monitors |
| 描述与应用 | 可靠的多个高速信号线ESD保护特点 •双向ESD保护符合IEC 61000-4-2（等级4） •适用于单向和双向线 •双向ESD保护四个数据线和一个电源线3倍数组 •路由所有ESD事件，无论是正面和负面的，安全接地 •适用于直流工作电压为5.6 V •低电容：10 pF最大 •符合USB 2.0标准 •无降至85°C的最大额定值 •表面贴装封装SOT23-6L外壳尺寸（英寸外壳尺寸1012） •极快的响应时间<0.5纳秒 •无铅适合无铅焊接镍挡板终端 •符合RoHS兼容 应用 •台式电脑和笔记本电脑 •外设 •便携式手持产品（如PDA） •移动通信 •消费类产品（机顶盒，支持MP3播放器，数码相机等） •液晶显示器（LCD）/监视器 |
