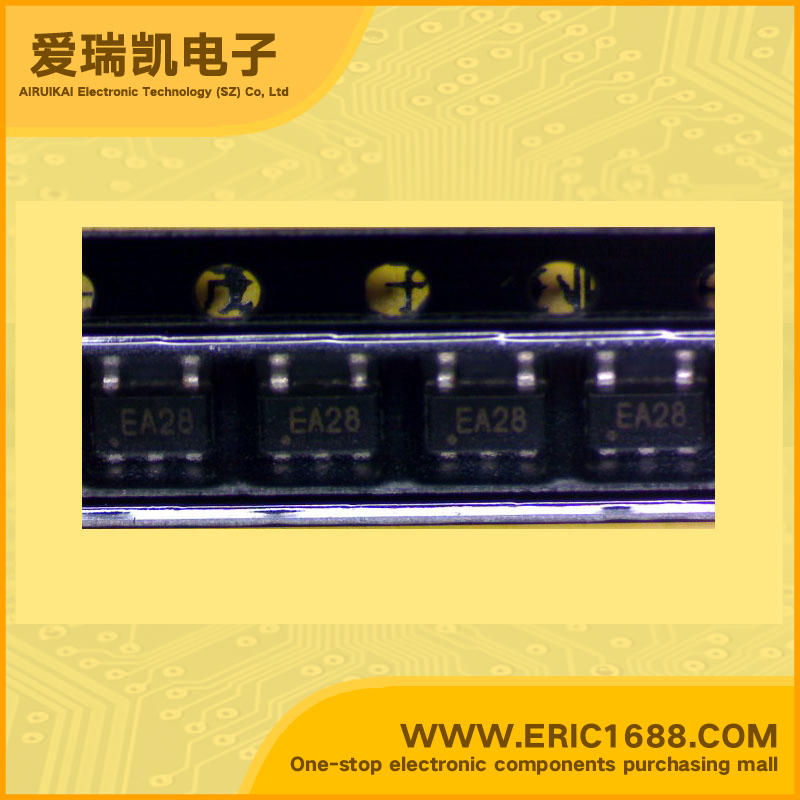

CM3018-28ST LDO Voltage Regulator 2.8V With Enable Pin SOT-153/SOT23-5 marking EA28 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
7V
输出电压VOUT
Voltage - Output
2.8V
输出电流Io
Current - Output
150mA/0.15A
最大压降VDO
Voltage - Dropout
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
Description & ApplicationsMicropower, 150mA Low Noise CMOS Regulator with Fast Response;• Fast (60µs) VOUT response when enabled • Ultra low noise (35µV rms typ.) • Delivers up to 150mA output current • Very low dropout (150mV at 150mA) • Low quiescent operating current (110µA) • Stable with low-ESR ceramic capacitors • “Zero” disable mode current consumption • Thermal overload protection • Foldback overload current protection • -40°C to +85°C temperature operation • Available in a 5-pin SOT23 and 5-bump Chip Scale Packages (CSP) • Lead-free versions available • Wireless handsets, PDAs, MP3 players, digital cameras • PCs and notebooks • Graphics cards, set-top boxes • Compact Flash memory cards • Battery-powered devices • PC cards
描述与应用微功耗,低噪声CMOS150毫安稳压器,具有响应速度快;•快速(60μS)VOUT  启用时的响应 •超低噪声(35μVRMS(典型值)。) •提供高达150mA的输出电流 •非常低压差(150mV的150mA时) •低静态工作电流(110μA) •稳定与低ESR陶瓷电容器 •“零”禁用模式的电流消耗 •热过载保护 •折返过载电流保护 •-40°C至+85°C温度操作 •可在5引脚SOT23和5凸点芯片级 封装(CSP) •无铅版本 •无线手机,掌上电脑,MP3播放器,数码相机 •PC和笔记本电脑 •图形卡,机顶盒 •紧凑型闪存卡 •电池供电设备 •PC卡
