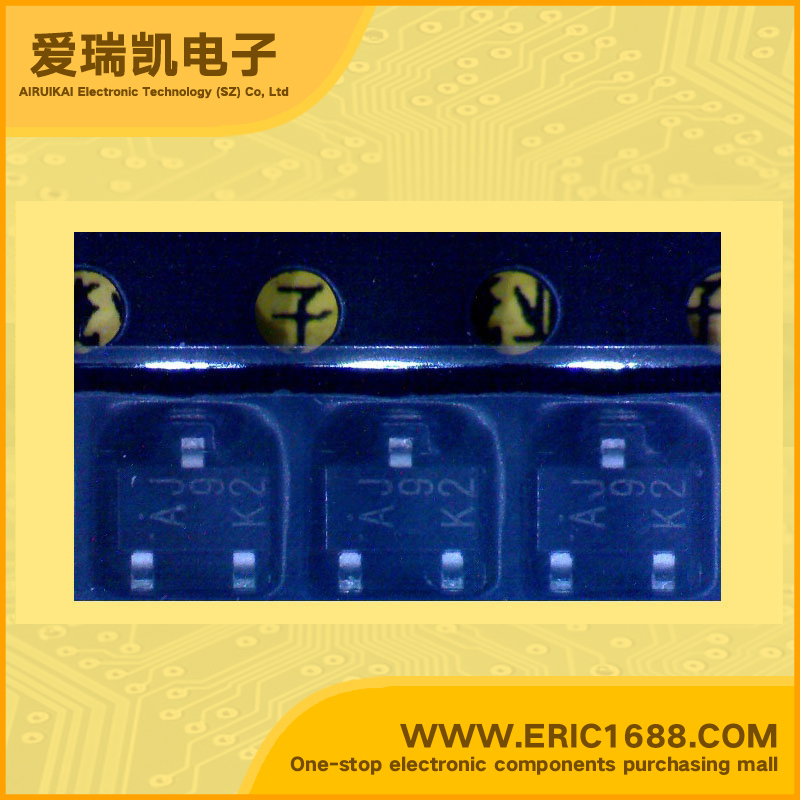

CPH3109-TL PNP transistors(BJT) -30V -3A 450MHz 200~560 -120mV/-0.12V SOT-23/CP marking AJ DC/ DCconvertor/relay driver

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
-30V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
−30V
集电极连续输出电流IC
Collector Current(IC)
-3A
截止频率fT
Transtion Frequency(fT)
450MHz
直流电流增益hFE
DC Current Gain(hFE)
200~560
管压降VCE(sat)
Collector-Emitter SaturationVoltage
-120mV/-0.12V
耗散功率Pc
PoWer Dissipation
900mW/0.9W
Description & ApplicationsDC/DC Converter Applications Applications · Relay drivers, lamp drivers, motor drivers, strobes. Features · Adoption of MBIT processes. · Large current capacitance. · Low collector-to-emitter saturation voltage. · High-speed switching. · Ultrasmall package facilitates miniaturization in end products (mounting height : 0.9mm). · High allowable power dissipation.
描述与应用DC/ DC转换器应用 应用  ·继电器驱动器,灯驱动器,电机驱动器,闪光灯。 特点  ·通过MBIT进程。  ·大电流容量。  ·低集电极 - 发射极饱和电压。  ·高速开关。  ·超小包装便于小型化的终端产品(安装高度:0.9毫米)。  ·高允许功耗
