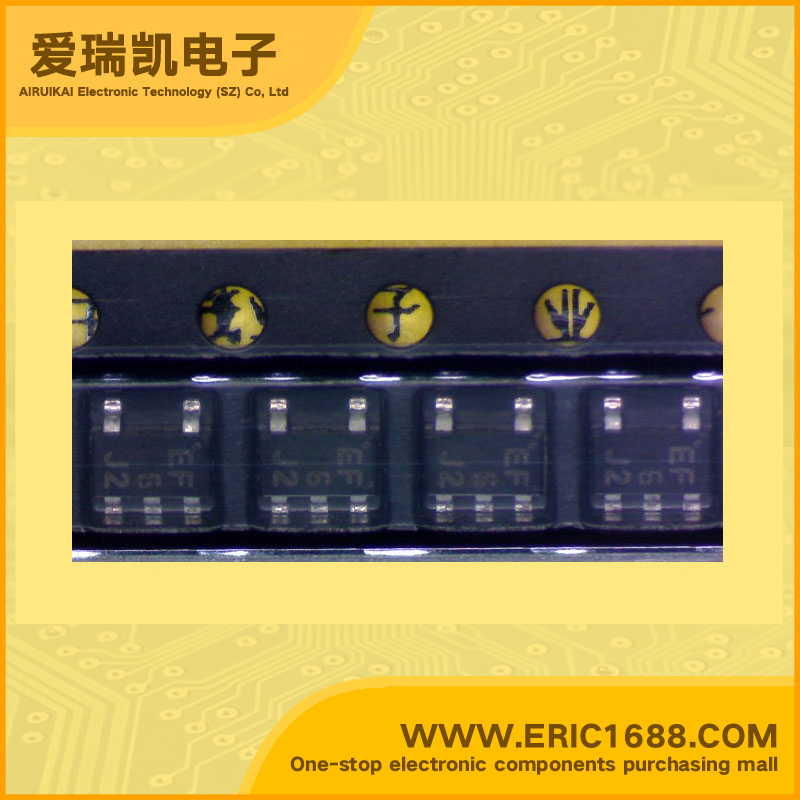

CPH5506 NPN+PNP Complex Bipolar Transistor 40V 1.5A HEF=200~560 SOT-153/CPH5/SC-74A marking EF switch and digital circuit application
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 40V/-30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 30V/-30V |
| 集电极连续输出电流IC Collector Current(IC) | 1.5A/-1.5A |
| 截止频率fT Transtion Frequency(fT) | 500MHz/450MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 200~560/200~560 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 150mV/-250mV |
| 耗散功率Pc Power Dissipation | 1.2W |
| Description & Applications | Features • NPN / PNP Epitaxial Planar Silicon Transistors • DC/DC converter Applications Applications • relay drivers, lamp drivers, motor drivers |
| 描述与应用 | 特点 •NPN / PNP外延平面硅晶体管 •DC / DC转换器应用 应用 •继电器驱动器，灯驱动器，电机驱动器 |
