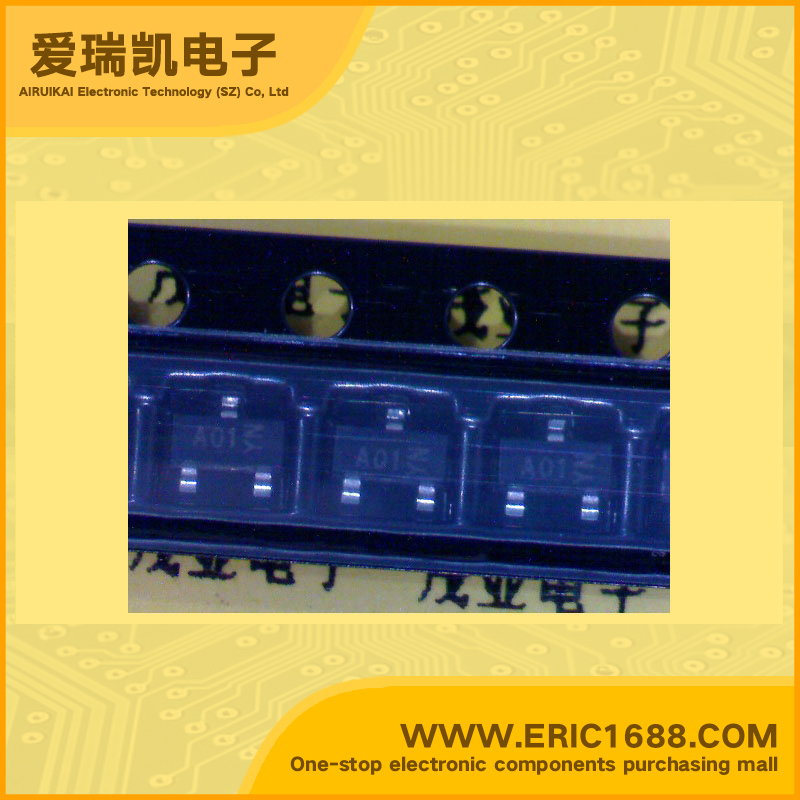

DLPT05-7-F TVS/ESD 5V 17A SOT-23-5V marking A01
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5V |
| 反向击穿电压VBR Breakdown Voltage | 6V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 300W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 17A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | SURFACE MOUNT DATA LINE PROTECTION DEVICE;Features • 300 Watts Peak Pulse Power (tp = 8x20μs) • Transient Protection for data line to IEC61000-4-2 level 4 (ESD), 8kV HBM Contact: Discharge – ±30kV Air: Discharge – ±30kV • IEC 61000-4-4 (EFT) • Low Leakage Current • Surface Mount Package Ideally Suited for Automated Insertion • Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device |
| 描述与应用 | 表面贴装数据线保护装置;特性 •300瓦峰值脉冲功率（TP =8x20μs） •暂态保护数据线IEC61000-4-2第4级（ESD），8kV的HBM 接触：放电 - ±30KV 空气放电 - ±30KV •IEC61000-4-4（EFT） •低漏电流 •表面贴装包装非常适合自动插入 •铅，卤素和无锑，符合RoHS标准 “绿色”设备 |
