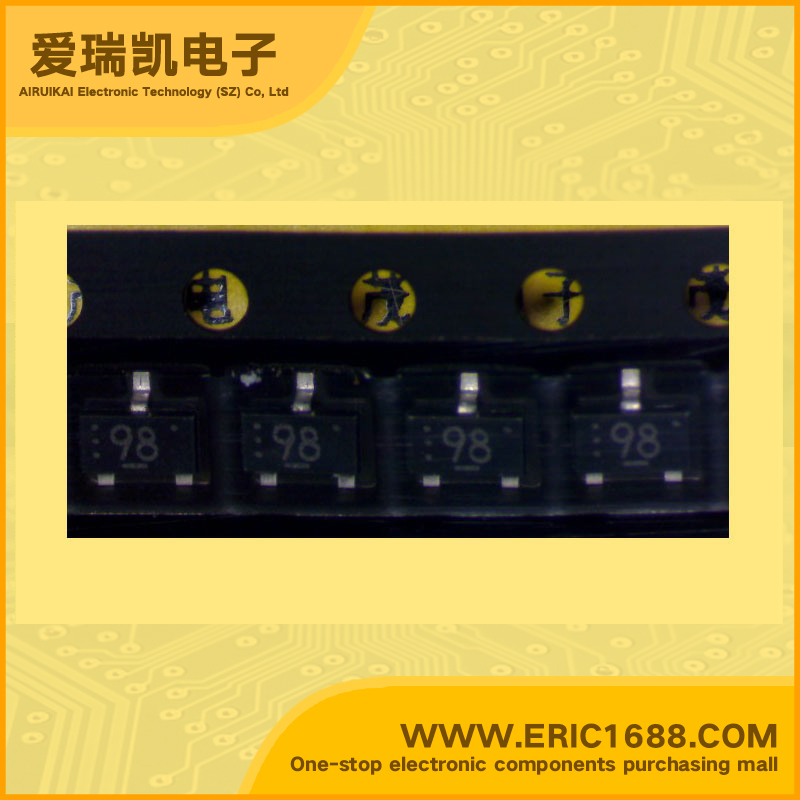

HALL IC DN8798MS SOT-23 marking 98
| 感应范围 Sensing Range | -20/-3mT跳闸,0.2/mT释放 -20/-3mT Trip,0.2/mT Release |
| 类型 Type | 霍尔效应开关 Hall Effect Switch |
| 电源电压 Voltage - Supply | 18V |
| 电源电流 Current - Supply | 1.0-6.0mA |
| 输出电流 Current - Output (Max) | |
| Description & Applications | 3 V operation Hall IC Overview The DN8798MS is a 3 V operation Hall IC which includes a Hall element, amplifier circuit, Schmidt circuit, stabilized power supply and temperature compensation circuit which are integrated on a single chip with a fine patterning technology. The magnetic input signal is outputted by being converted to high or low. We have improved the conventional circuit to realize a stable operation covering from low to high supply voltage and from ow to high temperature. Features • Wide operating supply voltage range (VCC = 2.7 V to 14.4 V) • Wide operating ambient temperature (−40°C to +85°C) • Package: Mini type (3-pin type) (1.1 mm thick: Same as a standard transistor) |
| 描述与应用 | 宽工作电源电压范围 （VCC=2.7 V至14.4 V） •宽工作环境温度（-40°C至+85°C） •封装：迷你型（3针） （1.1毫米厚的：同一个标准晶体管） |
