DSD015 Fast Recovery Diodes 300V 150mA 1V 200nS SOT-23/SC59 marking A8 high voltage switch/high breakdown voltage

Model：DSD015

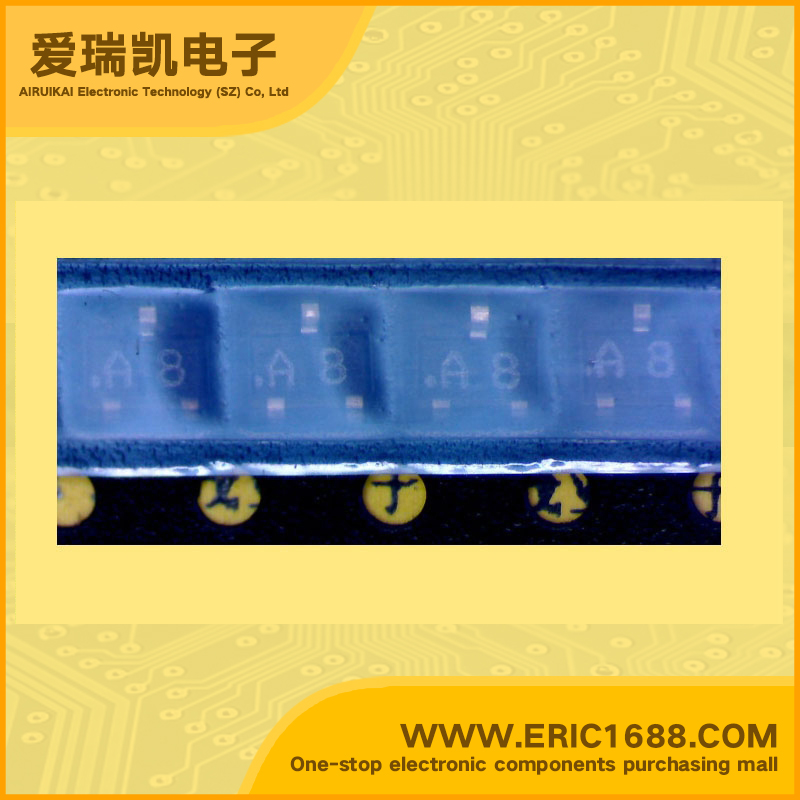

Mark / screen / code / typing：A8
Manufacturer：
Date Code：05+
Package：SOT-23/SC59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

反向电压Vr Reverse Voltage	300V
平均整流电流Io AverAge Rectified Current	0.15A/150mA
最大正向电压降VF Forward Voltage(Vf)	1V
反向恢复时间Trr Reverse Recovery Time	200nS
最大耗散功率Pd Power dissipation	200mW/0.2W
Description & Applications	High-Voltage Switching Diode ·Ideally suited for use in hybrid ICs because of very compact package. · High breakdown voltage
描述与应用	高电压开关二极管 ·理想的情况下，因为非常适合用于混合集成电路紧凑的封装。 ·高击穿电压

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
BCR133S NPN+NPN 50V 0.1A R1=R2=10KΩ 130MHZ SOT363 MARKING WC	BCR133S Mark：WC Package：SOT-363	-	Batch number：05+ 05+	2500 Min Order:10
TK71729SCL LDO Voltage Regulator 2.9V 163mV/0.163V With Enable Pin SOT-153/SOT23-5 marking 29K Short-Circuit Protection Over-Temperature Protection	TK71729SCL Mark：29K Package：SOT-153/SOT23-5	-	Batch number：05+	500 Min Order:10
XC62EP3602MR LDO Voltage Regulator 3.6V 100mV/0.1V With Enable Pin SOT-153/SOT-25/SOT23-5 marking 360 Short-Circuit Protection Over-Temperature Protection	XC62EP3602MR Mark：360 Package：SOT-153/SOT-25/SOT23-5	-	Batch number：05+ 02+	18000 Min Order:10
HRB0502ATR SBD Schottky Barrier Diodes 20V 500mA/0.5A 440mV/0.44V SOT-323/SC-70 marking E3 rectifier low forward voltage	HRB0502ATR Mark：E3 Package：SOT-323/SC-70	-	Batch number：05+	2700 Min Order:10
fuse normal blow CM05 0.5A SMC/DO-214AB marking 0.5A	CM05 Mark：0.5A Package：SMC/DO-214AB	-	Batch number：05+	1150 Min Order:10
Integrated Circuit（IC） RF switch UPG2155TB SOT-363 marking G4R	UPG2155TB Mark：G4R Package：SOT-363/SC70-6	-	Batch number：05+	300 Min Order:10
2SC4261 NPN Transistors(BJT) 25V 50mA 2.4GHz 50~180 300mV/0.3V SOT-323/SC-70/CMPAK marking QI ultra high frequency local oscillator	2SC4261 Mark：QI Package：SOT-323/SC-70/CMPAK	-	Batch number：05+ 05+	118500 Min Order:10
