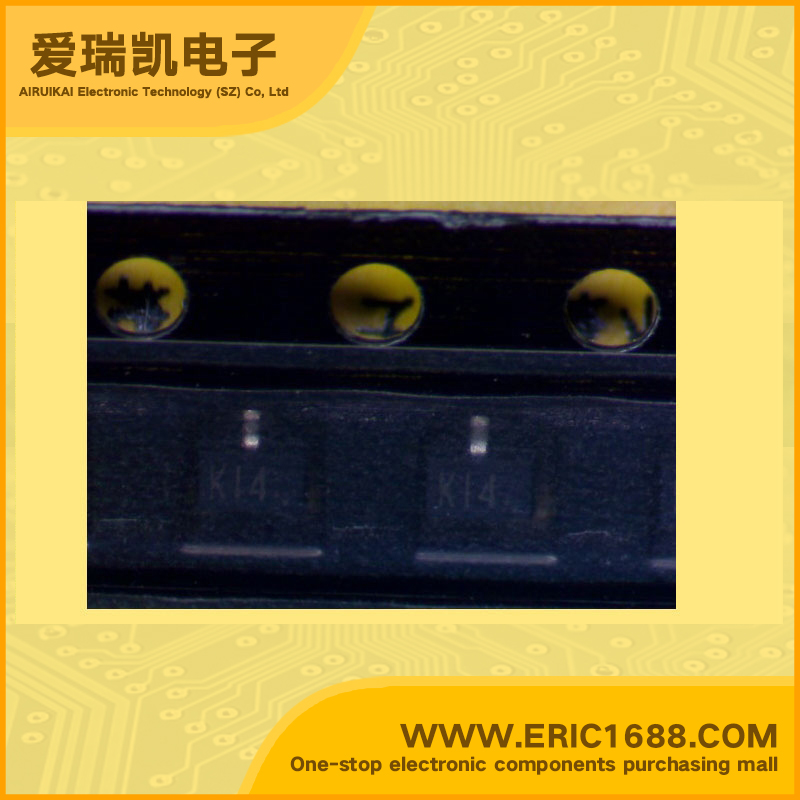

DTA114GU PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 30 0.2W/200mW SOT-323/SC-70/UMT3 marking K14 switch inverter interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)-50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)-50V
集电极连续输出电流IC Collector Current(IC)-100mA/-0.1A
基极输入电阻R1 Input Resistance(R1)10KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)
电阻比(R1/R2) Resistance Ratio
直流电流增益hFE DC Current Gain(hFE)30
截止频率fT Transtion Frequency(fT)250MHz
耗散功率Pc Power Dissipation0.2W/200mW
Description & ApplicationsFeature •Digital transistors (built-in resistor) •The built-in bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input, and parasitic effects are almost completely eliminated. •Only the on / off conditions need to be set for operation, making device design easy. • Higher mounting densities can be achieved.
描述与应用特点 •数字晶体管(内置电阻) •内置的偏置电阻组成的薄膜电阻完全隔离,允许输入的正偏压,寄生效应几乎完全消除。 •只有开/关条件需要设置操作,使装置的设计容易。 •高密度安装就可以实现。
