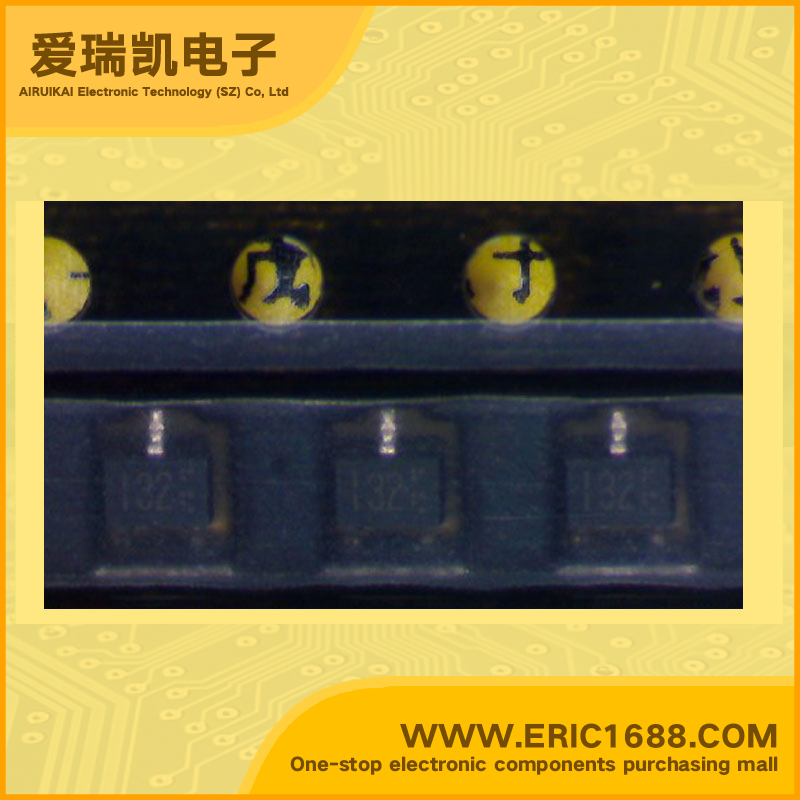

DTA123JU PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 0.2W/200mW SOT-323/SC-70/UMT3 marking 132 switch inverter interface driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -50V |
| 集电极连续输出电流IC Collector Current(IC) | -100mA/-0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 2.2KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 0.047 |
| 直流电流增益hFE DC Current Gain(hFE) | |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 耗散功率Pc Power Dissipation | 0.2W/200mW |
| Description & Applications | Features •Built-In Biasing Resistors •Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). •The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of completely eliminating parasitic effects. •Only the on/off conditions need to be set for operation, making the circuit design easy. •Complementary NPN Types :DTC123J series •Complex transistors :EMB10/ UMB10N/ IMB10A Inner circuit / EMA5/ UMA5N/ FMA5A （PNP type） •Lead Free/RoHS Compliant. Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit |
| 描述与应用 | 特点 •内置偏置电阻 •内置偏置电阻，可配置逆变电路没有连接外部 输入电阻（见等效电路）。 •偏置电阻组成的薄膜电阻完全隔离，允许负偏置输入的。它们还具有的优点是完全消除了寄生效应。 •只有开/关条件需要设置操作，使得电路的设计容易。 •互补NPN类型：DTC123J系列 •复杂的晶体管：EMB10 UMB10N// IMB10A的内部电路 / EMA5/ UMA5N的/ FMA5A的（PNP型） •无铅/ RoHS标准。 应用 开关电路，逆变电路，接口电路，驱动器电路 |
