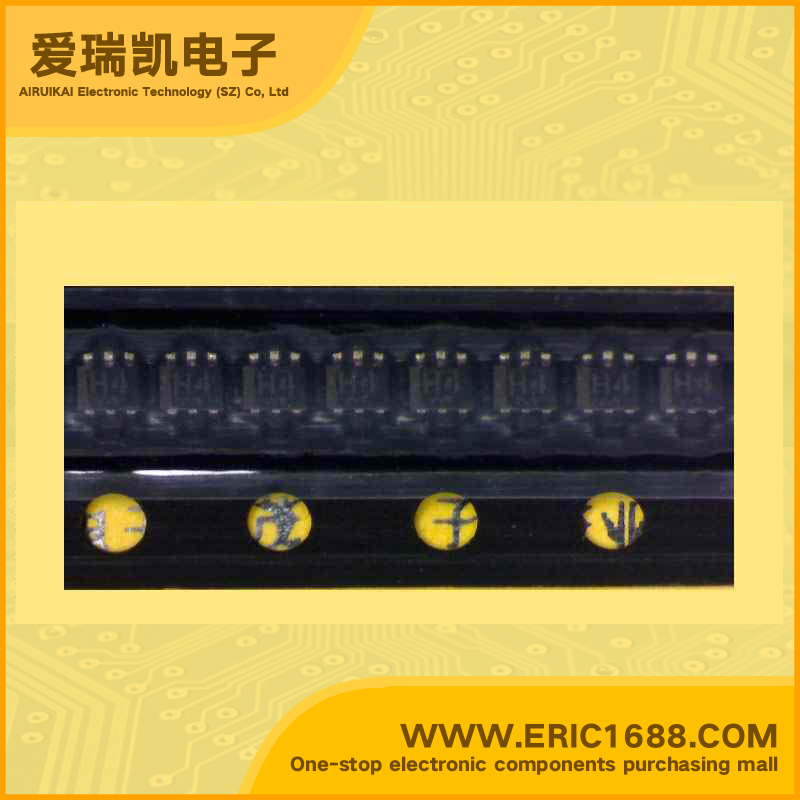

EMH4 NPN+NPN Complex Bipolar Digital Transistor 50V 100mA HEF=100~600 150mW/0.15W SOT-563/EMT6 marking H4 switching inverting interface driver circuit
| Collector-Base Voltage(VCBO) Q1/Q2 | 50V/50V |
| Collector-Emitter Voltage(VCEO) Q1/Q2 | 50V/50V |
| Collector Current(IC) Q1/Q2 | 100mA/100MA |
| Q1 Input Resistance(R1) | 10KΩ/Ohm |
| Q1Base-Emitter Resistance(R2) | |
| Q1(R1/R2) Q1 Resistance Ratio | |
| Q2 Input Resistance(R1) | 10KΩ/Ohm |
| Q2Base-Emitter Resistance(R2) | |
| Q2(R1/R2) Q2 Resistance Ratio | |
| DC Current Gain(hFE)Q1/Q2 | 100~600/100~600 |
| Transtion Frequency(fT) Q1/Q2 | 250MHz/250MHZ |
| Power Dissipation Q1/Q2 | 150mW/0.15W |
| Description & Applications | Features •General purpose (dual digital transistors) •Two DTC114T chips in a EMT or UMT or SMT package. |
| 描述与应用 | 特点 •通用（双数字晶体管） •两个DTC114T的在EMT或UMT或SMT封装的芯片 |
