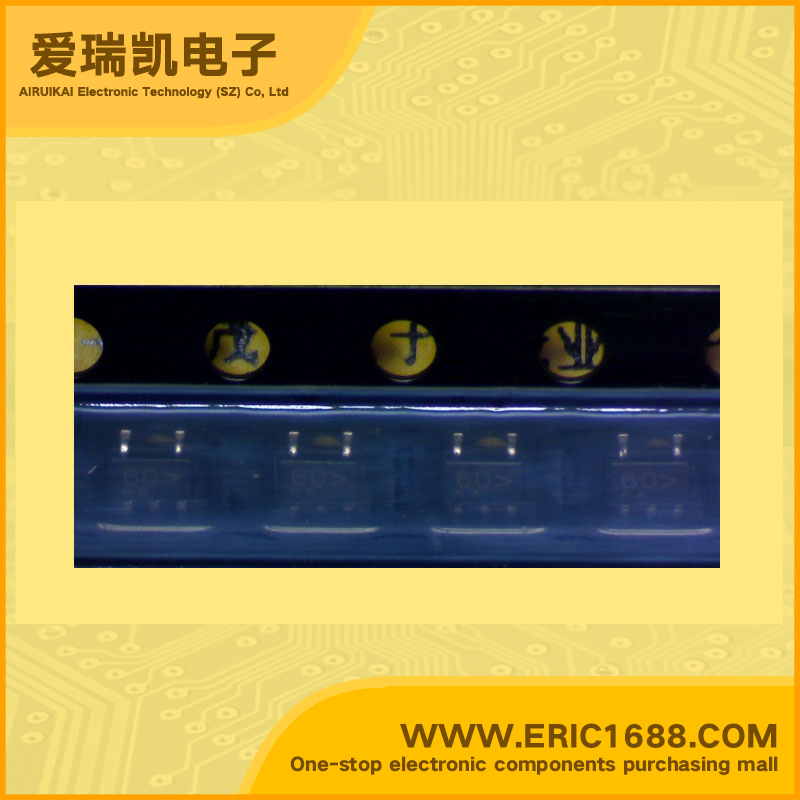

ENGSMF05UTG TVS/ESD 5V 0.385W/385mW SOT-353/SC-88A marking 60
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5V |
| 反向击穿电压VBR Breakdown Voltage | 6.6V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 200W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | |
| 额定耗散功率Pd Power dissipation | 0.385W/385mW |
| Description & Applications | Quad Array for ESD Protection;Specification Features • Low Clamping Voltage • Stand-Off Voltage 5 V • Low Leakage < 5 uA @ 5 V • SC−88A Package Allows Four Separate Unidirectional Configurations • IEC6100−4−2 Level 4 ESD Protection • Pb−Free Packages are Available |
| 描述与应用 | 四阵列的ESD 保护;规格特性 •低钳位电压 •反向关断电压5 V •低漏<5uA（5 V） •SC-88A封装允许四个单独的单向 配置 •IEC6100-4-24级ESD保护 •无铅包可用 |
