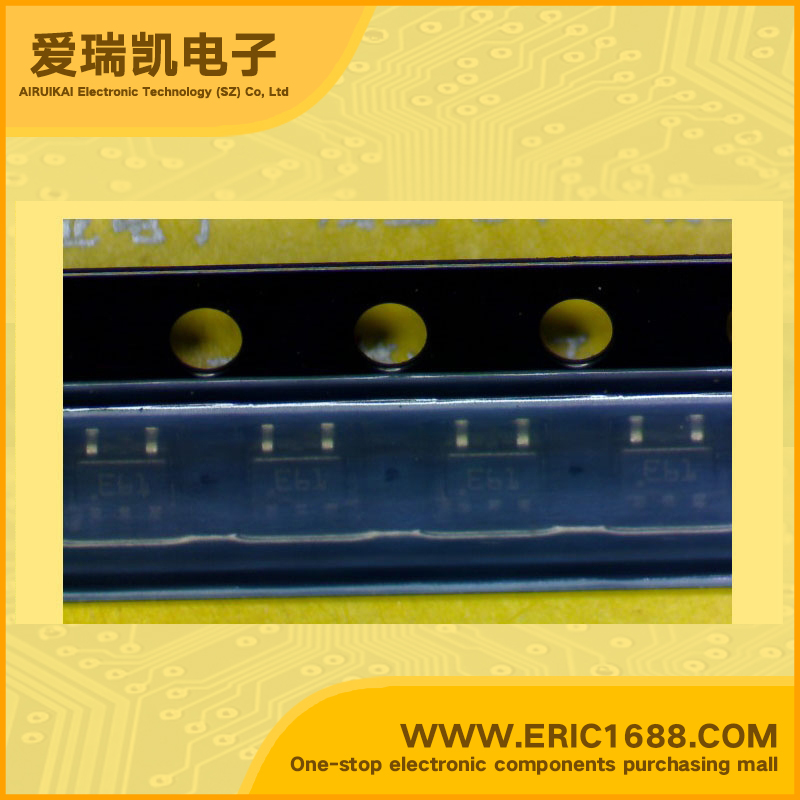

ESDA6V1W5 TVS/ESD 3V SOT-353/SC-88A marking E61
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 3V |
| 反向击穿电压VBR Breakdown Voltage | 6.1V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 150W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | TRANSIL array for data protection;Features • 4 unidirectional TRANSIL functions. • Breakdown voltage : VBR = 6.1 V min. • Low leakage current : < 1µA. • Very low PCB space consuming : 4.2 mm2 typically |
| 描述与应用 | TRANSIL阵列的数据保护;特性 • 4通道单向TRANSIL功能。 • 击穿电压：VBR=6.1 V最小。 • 低漏电流：<1μA。 • 非常低的PCB空间消耗：4.2平方毫米通常 |
