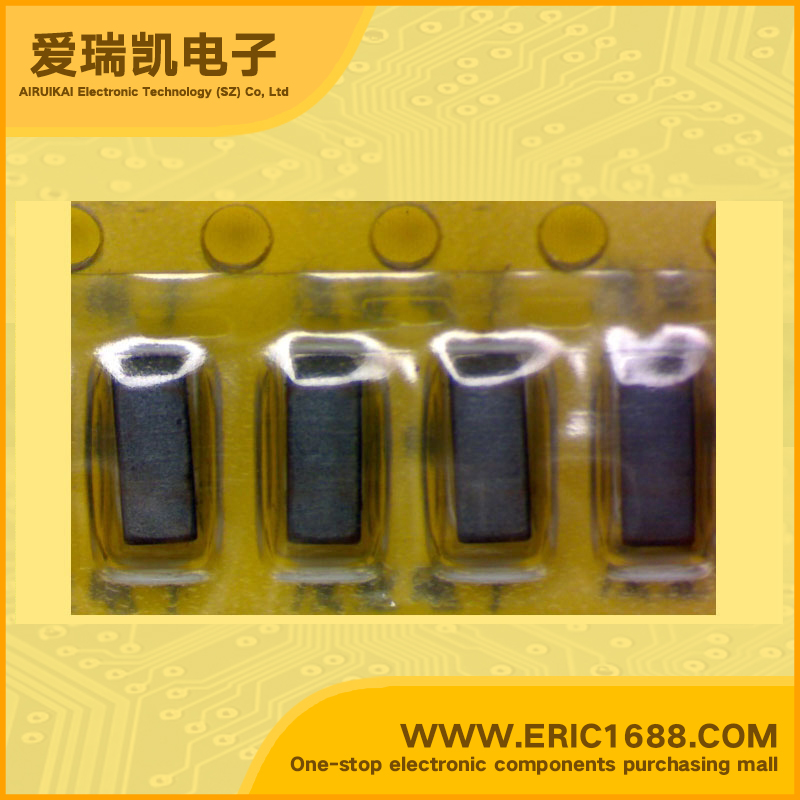

EXCCET220U 1 FUNCTIONS, 50 V, 2 A,25dB@800MHz-1000MHz 22pf DATA LINE FILTER
| 类型 Type |
低通 Low Pass |
| 技术 Technology |
RC |
| 通道数 Number of Channels |
1 |
| 中心/截止频率 Center / Cutoff Frequency |
900MHz |
| 衰减值 Attenuation Value |
25dB@800MHz-1000MHz |
| 电阻 - 通道 (Ω) Resistance - Channel (Ohms) |
0.05Ω |
| 电流 Current |
2000mA |
| 数值 Values |
C=22pF |
| ESD 保护 ESD Protection |
无 No |
| Description & Applications | Features Rated current (2 A max.) Eight capacitance values in a wide range, related to the noise frequency Suitable for narrow pitch insertion Suitable for applications requiring thin design RoHS compliant Recommended Applications Digital equipment such as PCs, word processors, printers, HDD, PPC and communication equipment. Digital audio and video equipment. AC adapters and switching power supplies. Electronic musical instruments and other digital equipment. |
| 描述与应用 | 特点 额定电流（最大2 A）。 八个电容值在很宽的范围内，有关 噪声频率 适合窄间距插入 适用于需要轻薄设计的应用 符合RoHS标准 推荐应用 数字设备，如个人电脑，文字处理机， 打印机，硬盘，的PPC和通信设备。 数字音频和视频设备。 AC适配器和开关电源。 电子乐器和其他数字设备 |
