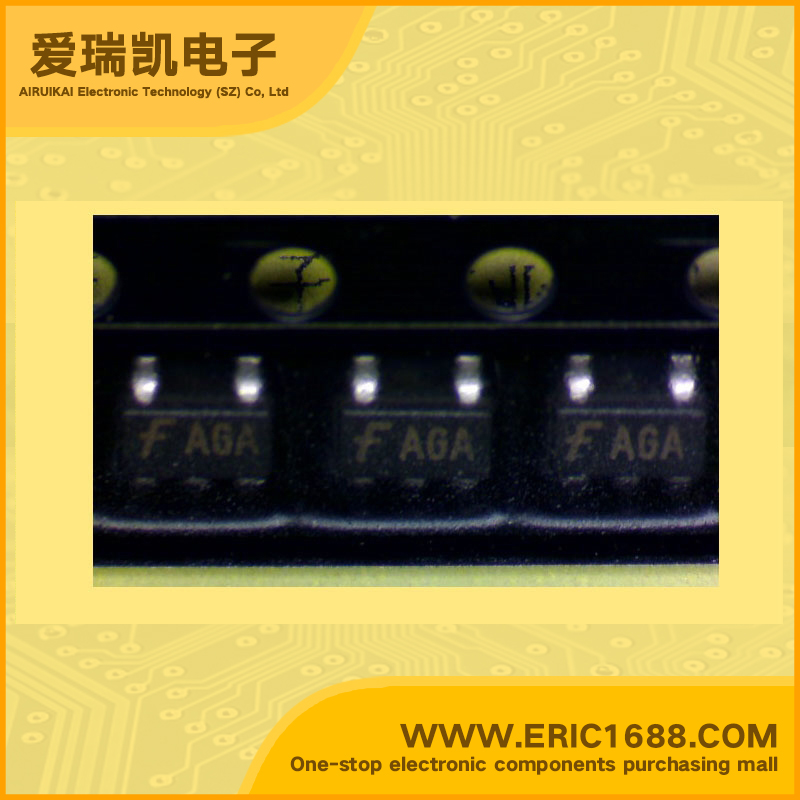

FAN2504SX LDO Voltage Regulator Adjustable 200mV/0.2V With Enable Pin SOT-153/SOT23-5 marking AGA Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 2.7~6.5V |
| 输出电压VOUT Voltage - Output | 可调/adj |
| 输出电流Io Current - Output | 200mA/0.2A |
| 最大压降VDO Voltage - Dropout | 200mV/0.2V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | 200 mA CMOS LDO Regulators ;•Ultra Low Power Consumption • 200 mV dropout voltage at 200 mA • 75 µA ground current at 200 mA • Enable/Shutdown Control • SOT23-5 package • Thermal limiting • 300 mA peak current Applications • Cellular Phones and accessories • PDAs • Portable cameras and video recorders • Laptop, notebook and palmtop computers |
| 描述与应用 | 200毫安的CMOS LDO稳压器;•超低功耗 •200 mV的电压差在200 mA •75μA接地电流为200毫安 •使能/关断控制 •SOT23-5封装 •热限制 •300 mA峰值电流 应用 •手提电话及配件 •掌上电脑 •便携式摄像机和录像机 •笔记本电脑，笔记本电脑和掌上电脑 |
