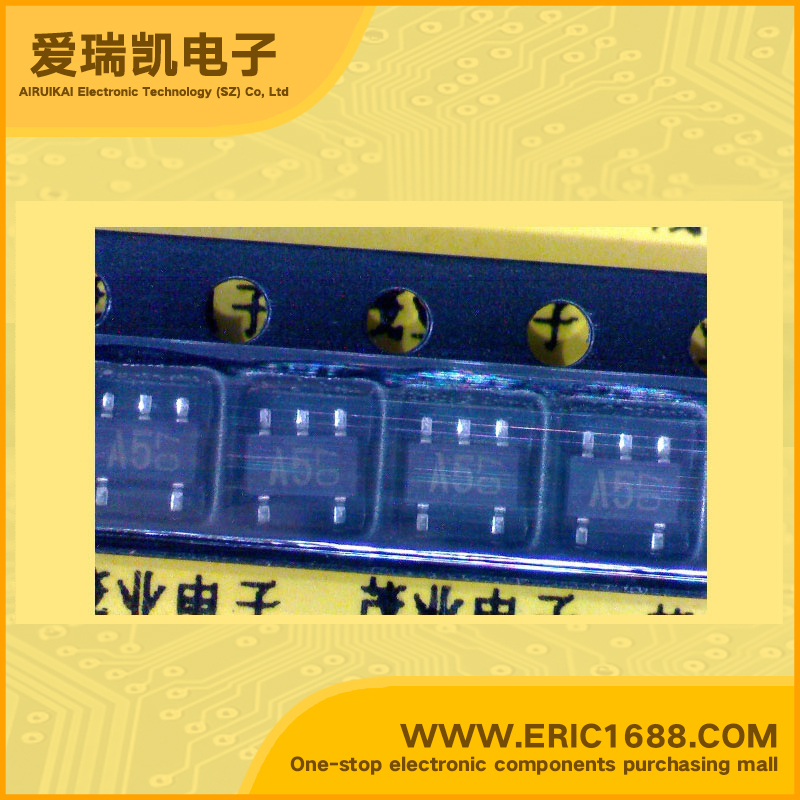

FMA5 PNP+PNP Complex Bipolar Digital Transistor -50V -0.1A 0.3W R1=2.2KΩ R2=47KΩ SOT-153/SMT5/SC-74A/SOT23-5 marking A5 switching inverting interface driver circuit
|
V(BR) CBO Collector-Base Voltage |
-50V |
|
V(BR) CEO Collector-Emitter Voltage |
-50V |
| Collector Current(IC) | -100MA |
| Input Resistance(R1) | 2.2 KΩ |
| Base-Emitter Resistance(R2) | 47KΩ |
| Base-Emitter Input Resistance Ratio (R1/R2) | 0.0468 |
| DC Current Gain(hFE) | |
| Transtion Frequency(fT) | 150MHZ |
| Power Dissipation （Pd） | 0.3W |
| Description & Applications | Emitter common (dual digital transistors)
1) Two DTA114T in a EMT or UMT or SMT package.
2) Mounting cost and area can be cut in half.
|
| Technical Documentation Download | Read Online |
