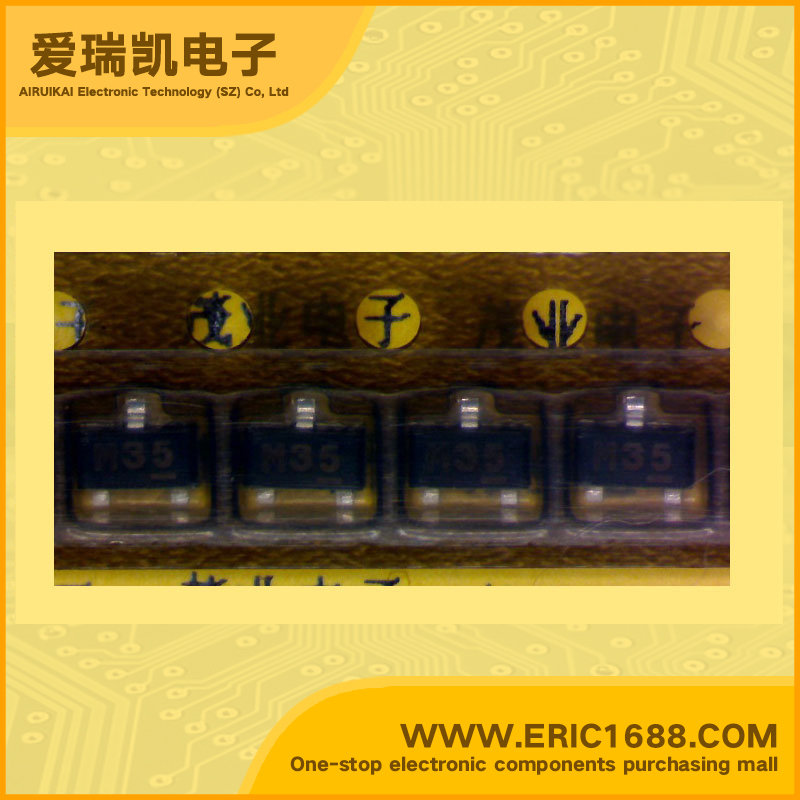

FN1F4N PNP Bipolar Digital Transistor (BRT) -60V -100mA/-0.1A 85~340 0.2W/200mW SOT-23/SC-59 marking m35 switch inverter interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)-60V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)-50V
集电极连续输出电流IC Collector Current(IC)-100mA/-0.1A
基极输入电阻R1 Input Resistance(R1)22KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)47KΩ/Ohm
电阻比(R1/R2) Resistance Ratio0.47
直流电流增益hFE DC Current Gain(hFE)85~340
截止频率fT Transtion Frequency(fT)
耗散功率Pc Power Dissipation0.2W/200mW
Description & ApplicationsFeature •medium speed switching resistor built-in type PNP transistor mini mold •resistor built-in type •complementary to FN1A4N
描述与应用特点 •中速开关电阻内置型PNP晶体管小型模具 •电阻器内置型 •互补FN1A4N的
