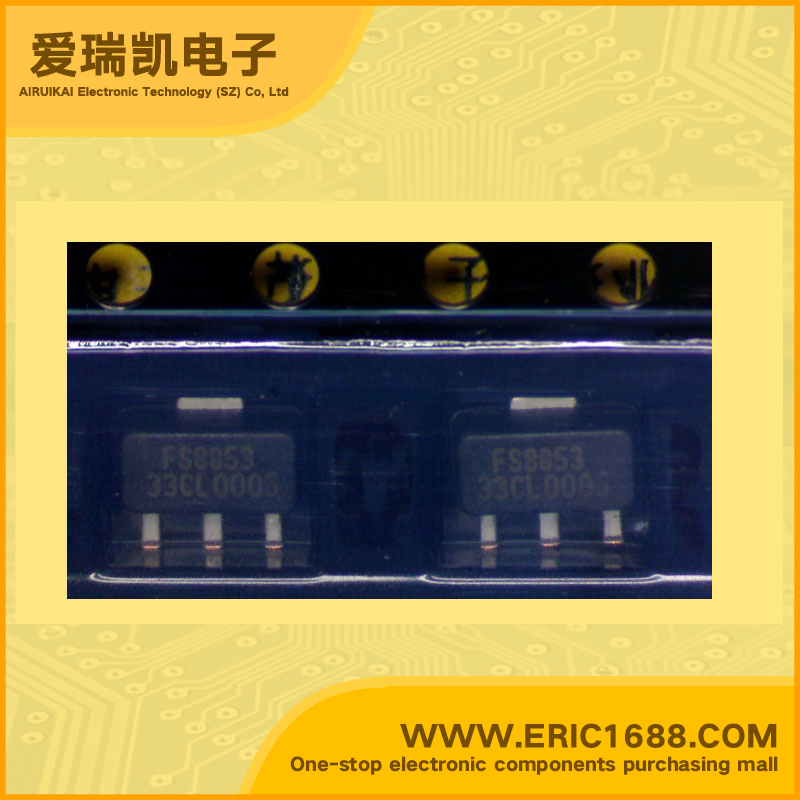

FS8853-33CL LDO Voltage Regulator 3.3V 400mV/0.4V SOT-89 marking FS8853-33CL Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 2.5~9V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 300mA/0.3A |
| 最大压降VDO Voltage - Dropout | 400mV/0.4V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 550mW/0.55W |
| Description & Applications | 300mA LDO Linear Regulator;•Low dropout voltage 400mV at 300mA (Typ.) •Up to ±35mV output voltage accuracy (VIN≦7V) • Preset at 2.5V, 3.3V • Mask options from 1.3V to 4.5V •Small output capacitor •Output current limit • Thermal overload shutdown protection •TO-92, SOT-89 and SOT-23 Package • Battery Powered Equipment •Palmtops •Portable Cameras and Video Recorders •Reference Voltage Sources • Post Regulator for Switching Power |
| 描述与应用 | 300mA的LDO线性稳压器;•低压差电压400mV的在300mA（典型值） •高达±35MV输出电压精度（VIN≦7V） •预置在2.5V，3.3V •从1.3V至4.5V的掩膜选项 •小的输出电容 •输出电流限制 •过热关断保护 •TO-92，SOT-89和SOT-23封装 •电池供电设备 •掌上电脑 •便携式相机和录像机 •参考电压源 •后稳压开关电源 |
