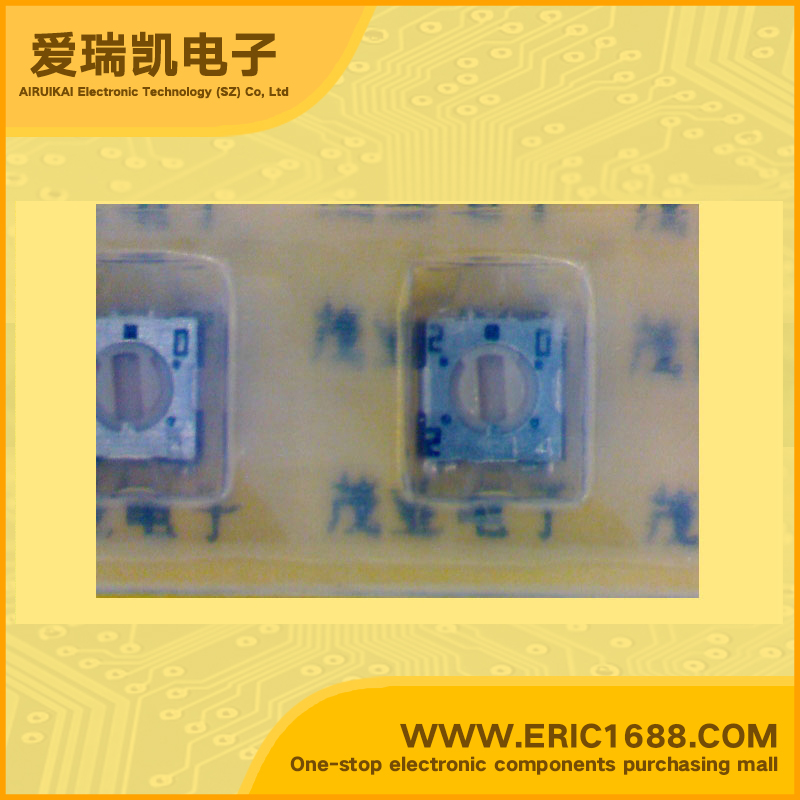

3mm square SMD, single-turn, sealed cermet trimmers G3ATB202M 2KΩ/Ohm 3X3-2K marking 202
| 电阻值 Resistance |
2KΩ/Ohm |
| 额定功率 Power |
0.125w,1/8w |
| 容差 Tolerance |
±20% |
| 温度系数 Temperature Coefficient |
±100ppm/°C |
| 圈数 Number of Turns |
单圈 Single |
| 调节类型 Adjustment Type |
顶部调节 Top Adjustment |
| 端子类型 Termination Style |
J引线 J Lead |
| Description & Applications | ● 3mm square SMD, single-turn, sealed cermet trimmers ● Available in J-hook and gull-wing terminal configurations ● Top adjustment in single-slot or automatic adjust cross-slot design ●Wide temperature range of!55&C to~125&C ●Designed for flow, reflow or infrared reflow soldering ●Sealed to withstand immersion cleaning processes ●Tape and reel packaging ● Meets EIA, EIAJ, IPC, VECI standard SMD trimmer designs |
| 描述与应用 | ●3mm的方形贴片，单圈密封的金属陶瓷剪 ●可在J型钩和鸥翼式终端配置 ●调整在单插槽或自动调节十字槽设计 ●温度范围宽！55＆C〜125＆C ●专为流量，回流或红外回流焊 ●密封承受浸泡清洗流程 ●编带和卷轴包装 ●符合EIA，EIAJ，IPC，VECI标准SMD微调设计 |
