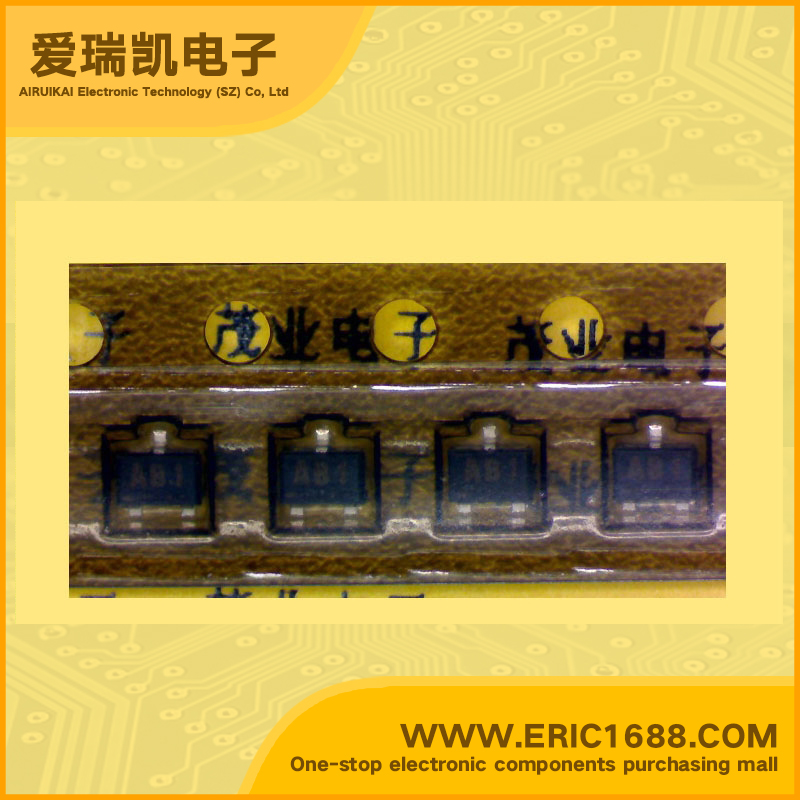

GA4F4M NPN Bipolar Digital Transistor (BRT) 60V 100mA/0.1A 22k 22k gain60-90 SOT-323/SC-70 marking AB1 High current drives IC output

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)60V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)50V
集电极连续输出电流IC Collector Current(IC)100mA/0.1A
基极输入电阻R1 Input Resistance(R1)22KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)22KΩ/Ohm
电阻比(R1/R2) Resistance Ratio1
直流电流增益hFE DC Current Gain(hFE)60-90
截止频率fT Transtion Frequency(fT)
耗散功率Pc Power Dissipation0.2W/200mW
Description & ApplicationsFEATURES • Compact package • Resistors built-in type • Complementary to GN4xxx
描述与应用特性 •小型封装 •内置电阻型 •对管是GN4xxx
