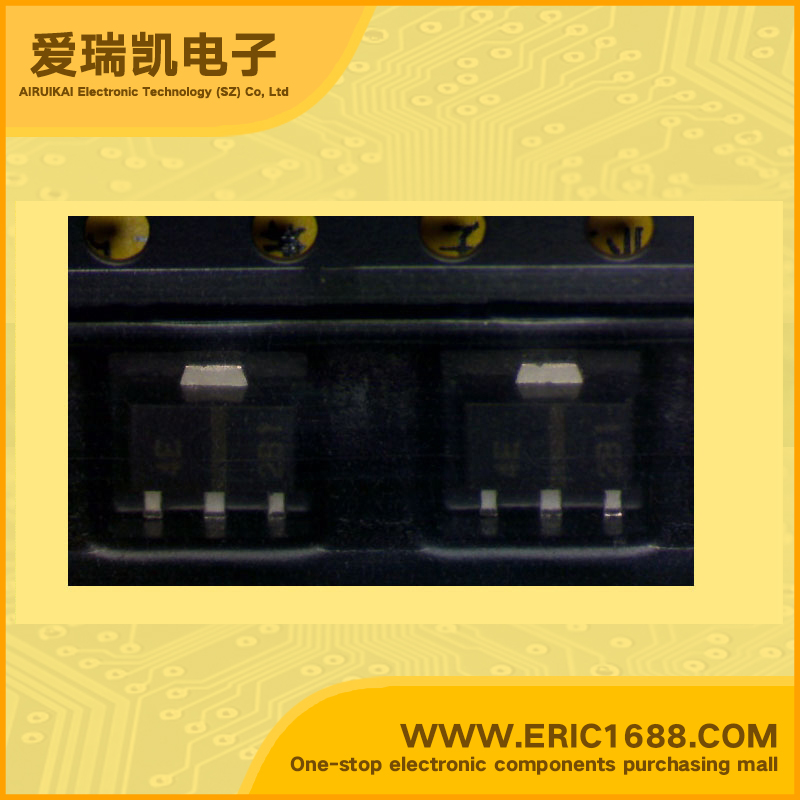

HA17L432UP Voltage Reference Power Management IC 2.495V~40V SOT-89/UPAKV marking 4E Shunt Regulator Low Temperature Coefficient
| 参考类型 Reference Type | |
| 输出电压Vo Voltage - Output | 2.495V~40V |
| 误差 Tolerance | ±2.2% |
| 温度系数 Temperature Coefficient | |
| 输入电压 Voltage - Input | 2.495V~40V |
| 阴极电流 Current - Cathode | 1mA |
| 输出电流IOUT Current - Output | 100mA/0.1A |
| Description & Applications | FEATURES • SHUNT REGULATOR • The V versions provide 2.500 V ±1% at Ta = 25°C • The HA17431VLP includes a photocoupler bypass resistor (2 kΩ) • The reference voltage has a low temperature coefficient • The MPAK-5V(5-pin), MPAKV(3-pin) and UPAKV miniature packages are optimal for use on high mounting density circuit boards |
| 描述与应用 | 特点 •并联稳压器 •V版本提供2.500 V±1％在Ta= 25°C •HA17431VLP包括光耦合器旁路电阻（2kΩ的） •参考电压具有低温度系数 •MPAK-5V（5针），MPAKV（3针）和UPAKV微型封装最适合用于高安装密度电路板 |
