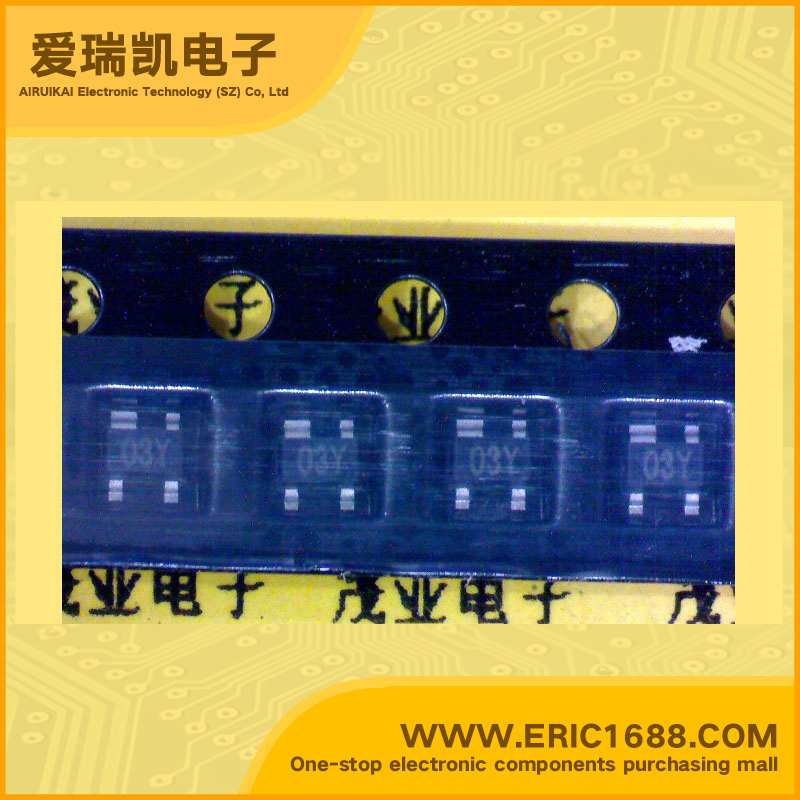

HBFP-0420-TR1 NPN Transistors(BJT) 15V 36mA 1.8GHz 50~150 2V SOT-343 marking 03Y low noise amplifier(LNA),oscillator

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
15V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
4.5V
集电极连续输出电流IC
Collector Current(IC)
36mA
截止频率fT
Transtion Frequency(fT)
1.8GHz
直流电流增益hFE
DC Current Gain(hFE)
50~150
管压降VCE(sat)
Collector-Emitter Saturation Voltage
2V
耗散功率Pc
Power Dissipation
162mW/0.162W
Description & ApplicationsHigh Performance Isolated Collector Silicon Bipolar Transistor Ideal for High Gain, Low Noise Applications Can be Used Without Impedance Matching Applications LNA, Oscillator, Driver Amplifier, Buffer Amplifier, and Down Converter for Cellular and PCS Handsets and Cordless Telephones Oscillator for TV Delivery and TVRO Systems up to 10 GHz
描述与应用高性能隔离 硅双极晶体管集电极 非常适于高增益,低噪声应用 可以不使用阻抗匹配应用 低噪声放大器(LNA),振荡器,驱动器放大器,缓冲放大器和下变频器 蜂窝和PCS手机和无绳电话 电视交付高达10 GHz的TVRO系统振荡器
