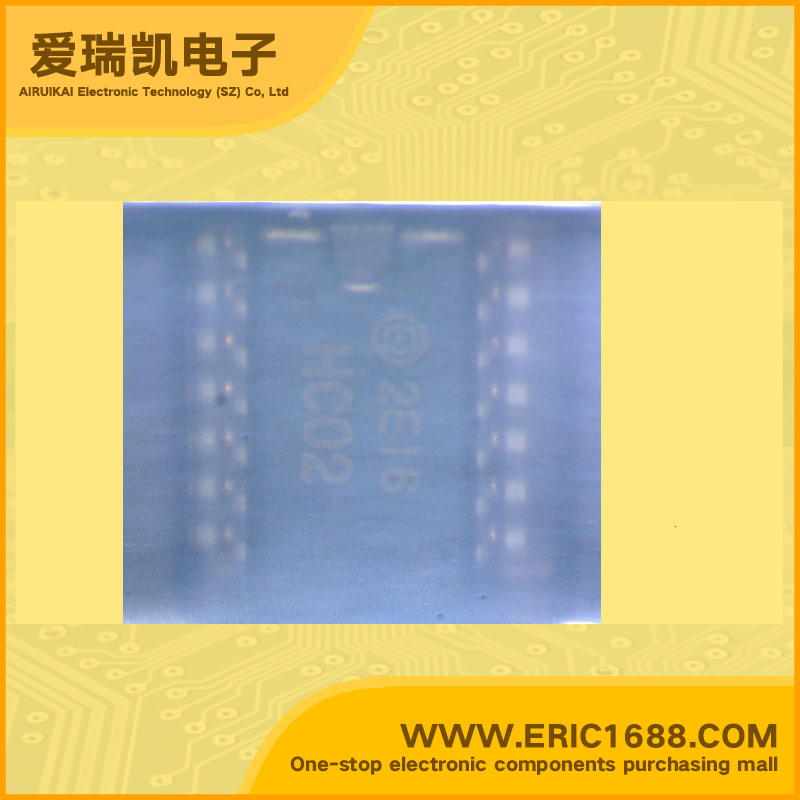

Integrated Circuit(IC) NOR gate HD74HC02FP SOP14 marking

Hot selling goods

Product description
逻辑类型
Logic Type
或非门 NOR Gate
电路数
Number of Circuits
4
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2V~6V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-5.2mA,5.2mA
低逻辑电平
Logic Level - Low
0.5V~1.8V
高逻辑电平
Logic Level - High
1.5V~4.2V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
6ns @ 4.5V,50pF
Description & ApplicationsQuad. 2-input NAND Gates;Features High Speed Operation: tpd = 6.5 ns typ (CL = 50 pF) High Output Current: Fanout of 10 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V Low Input Current: 1 µA max Low Quiescent Supply Current: ICC (static) = 1 µA max (Ta = 25°C)
描述与应用四。 双输入与非门;特性 高速操作:TPD =6.5 ns(典型值)(CL= 50 PF) 高输出电流:扇出的10输入通道荷载 宽工作电压:VCC=2到6 V 低输入电流:最大1μA 低静态电源电流:ICC(静态)= 1μA最大(大= 25°C)
