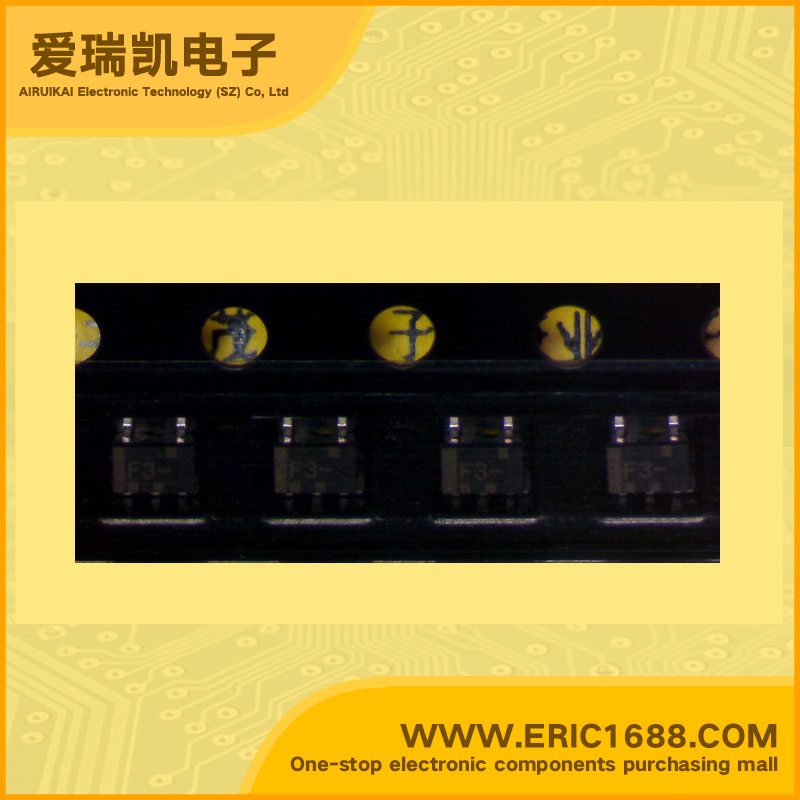

Integrated Circuit（IC） NOR gate HD74HCT1G02CME SOT-353/CMPAK-5 marking F3
| 逻辑类型 Logic Type | 或非门 NOR Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 4.5V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 0.2uA |
| 输出高，低电平电流 Current - Output High, Low | -2mA，2mA |
| 低逻辑电平 Logic Level - Low | 0.8V |
| 高逻辑电平 Logic Level - High | 2V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 16.2ns @ 4.5V，50pF |
| Description & Applications | 2–input NOR Gate；Features The basic gate function is lined up as Renesas uni logic series. Supplied on emboss taping for high-speed automatic mounting. Electrical characteristics equivalent to the HD74HC02 Supply voltage range : 2 to 6 V Operating temperature range : –40 to +85°C |IOH| = IOL = 2 mA (min) |
| 描述与应用 | 双输入或非门;特性 基本门功能一字排开日立单向逻辑系列 提供浮雕盘带高速自动安装 电气特性相当于HD74HC32 电源电压范围：2到6 V 工作温度范围：-40至+85°C | IOH= IOL=2 mA（最小） |
