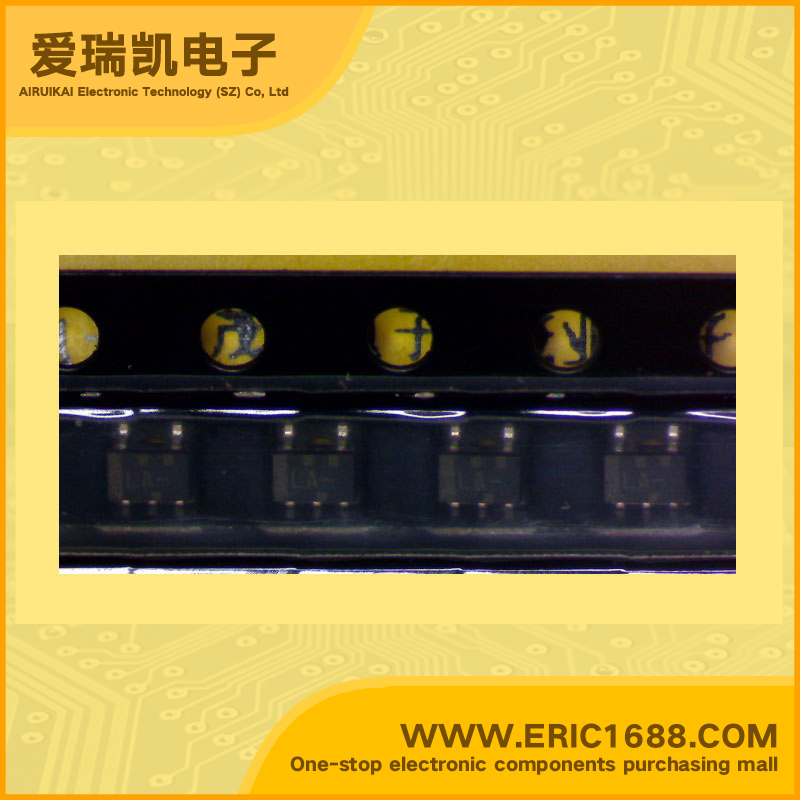

Integrated Circuit(IC) Inverting Schmitt trigger HD74LV1G14ACME SOT-353/CMPAK-5 marking LA

Hot selling goods

Product description
逻辑类型
Logic Type
反相施密特触发器 Inverting Schmitt trigger
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
1.65V~5.5V
静态电流Iq
Current - Quiescent (Max)
10uA
输出高,低电平电流
Current - Output High, Low
-12mA,12mA
低逻辑电平
Logic Level - Low
0.1V~0.55V
高逻辑电平
Logic Level - High
1.4V~3.8V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
7.0ns @ 5V,50pF
Description & ApplicationsInverter with Schmitt–trigger Input;Features The basic gate function is lined up as Renesas uni logic series Supplied on emboss taping for high-speed automatic mounting Electrical characteristics equivalent to the HD74LV14A Supply voltage range : 1.65 to 5.5 V Operating temperature range : –40 to +85°C All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.5 V (@VCC = 0 V) Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V) All the logical input has hysteresis voltage for the slow transition
描述与应用逆变器与施密特触发器输入;特性 基本门功能一字排开瑞萨单向逻辑系列 提供压纹高速自动安装盘带 电气特性相当于HD74LV14A 电源电压范围:1.65至5.5 V 工作温度范围:-40至+85°C 所有输入VIH(最大)=5.5 V(@VCC= 0 V至5.5 V) 所有输出VO(最大)=5.5 V(@VCC=0 V) 输出电流±6毫安(@VCC= 3.0 V到3.6 V),±12毫安(@VCC= 4.5 V至5.5 V) 所有的逻辑输入具有滞后电压的缓慢过渡
