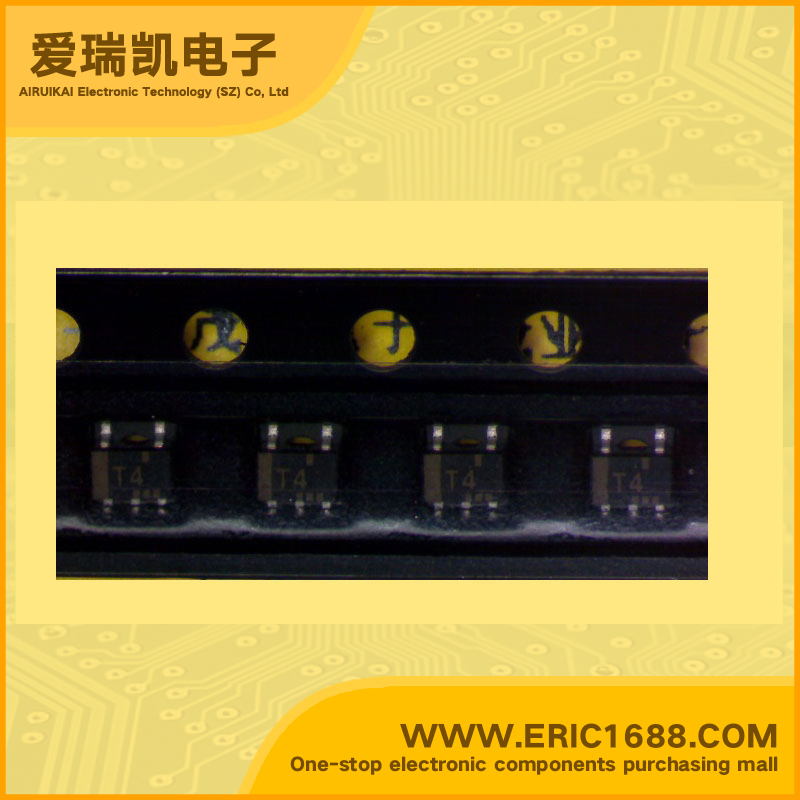

Integrated Circuit（IC） OR gate HD74LV1GT32ACME SOT-353/CMPAK-5 marking T4
| 逻辑类型 Logic Type | 或门 OR Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 3V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 10uA |
| 输出高，低电平电流 Current - Output High, Low | -12mA，12mA |
| 低逻辑电平 Logic Level - Low | 0.6V~0.8V |
| 高逻辑电平 Logic Level - High | 1.5V~2V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 5.5ns @ 5V，50pF |
| Description & Applications | 2–input OR Gate / CMOS Logic Level Shifter；Features The basic gate function is lined up as Renesas uni logic series Supplied on emboss taping for high-speed automatic mounting TTL compatible input level Supply voltage range : 3.0 to 5.5 V Operating temperature range : –40 to +85°C Logic-level translate function 3.0 V CMOS logic → 5.0 V CMOS logic (@VCC = 5.0 V) 1.8 V or 2.5 V CMOS logic → 3.3 V CMOS logic (@VCC = 3.3 V) All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.5 V (@VCC = 0 V) Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V) All the logical input has hysteresis voltage for the slow transition |
| 描述与应用 | 2输入或门/ CMOS逻辑电平转换器;特性 基本门功能一字排开瑞萨单向逻辑系列 提供压纹盘带高速自动安装 TTL兼容的输入电平 电源电压范围：3.0至5.5 V 工作温度范围：-40至+85°C 逻辑电平转换功能 3.0 V CMOS逻辑→5.0 V CMOS逻辑（VCC= 5.0 V） 1.8 V或2.5 V CMOS逻辑→3.3 V CMOS逻辑（VCC = 3.3 V） 所有输入VIH（最大）=5.5 V（VCC= 0 V至5.5 V） 所有输出VO（最大）=5.5 V（VCC=0 V） 输出电流±6毫安（VCC= 3.0 V到3.6 V），±12毫安（VCC= 4.5 V至5.5 V） 所有的逻辑输入具有滞后电压的缓慢过渡 |
