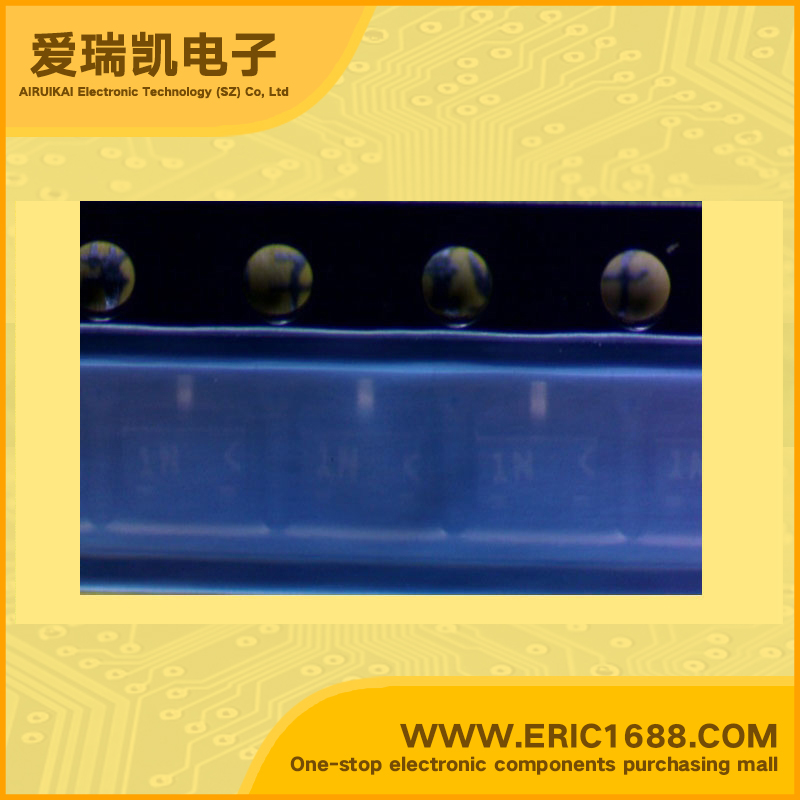

darlington transistor MMBTA14LT1 NPN 300mA/0.3A 30V SOT-23/SC-59 markign1N switch power amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-EmitterVoltage(VCEO) | 30V |
| 集电极连续输出电流IC Collector Current(IC) | 300mA/0.3A |
| 截止频率fT Transtion Frequency(fT) | 125MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 10000 @ 5V,0.1A |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | 1.5V |
| 耗散功率Pc Power Dissipation | 300mW/0.3W |
| Description & Applications | • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant |
| 描述与应用 | • 该产品是无铅，无卤/ 无BFR，并符合RoHS |
