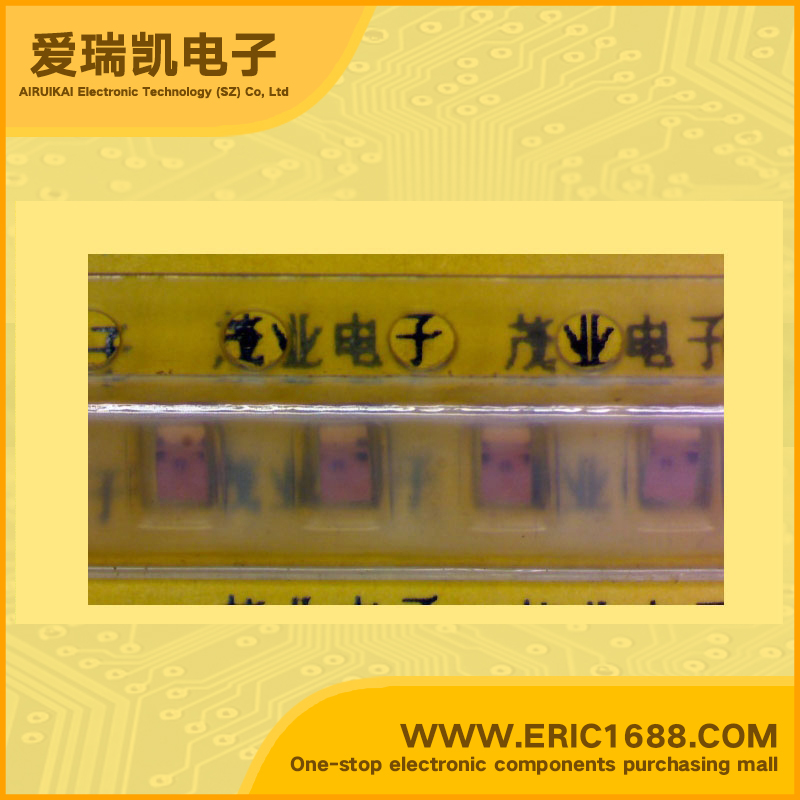

HSMS-C670 LED Doide 2.2/2.6/2.6/2.6/3v 20mA 50mW 603red
| 颜色 Color | 红色 Red |
| 流明Lv(mcd) Luminous intensity | 16/5/4/5/9mcd |
| 正向电压(VF) Forward Voltage(Vf) | 2.2/2.6/2.6/2.6/3v |
| 正向电流(IF) ForwArd Current(If) | 20mA |
| 主波长λd(nm) Dominant Wavelength | 639/626/604/586/571nm |
| 峰值波长λp(nm) Peak Wavelength | 650/639/606/584/566nm |
| 最大耗散功率Pd Power dissipation | 50mW |
| Description & Applications | Surface Mount Chip LEDs • Small Size • Low Profile • Tinted, Diffused Optics • Compatible with IR Solder Process • Five Colors and Bicolor Available • Available in 8 mm Tape on •7" (178 mm) Diameter |
| 描述与应用 | 表面贴装芯片LED •小尺寸 •薄型 •有色，扩散光学 •兼容IR焊接工艺 •五色和双色可用 •可在8毫米磁带 •7“（178 mm）直径 |
