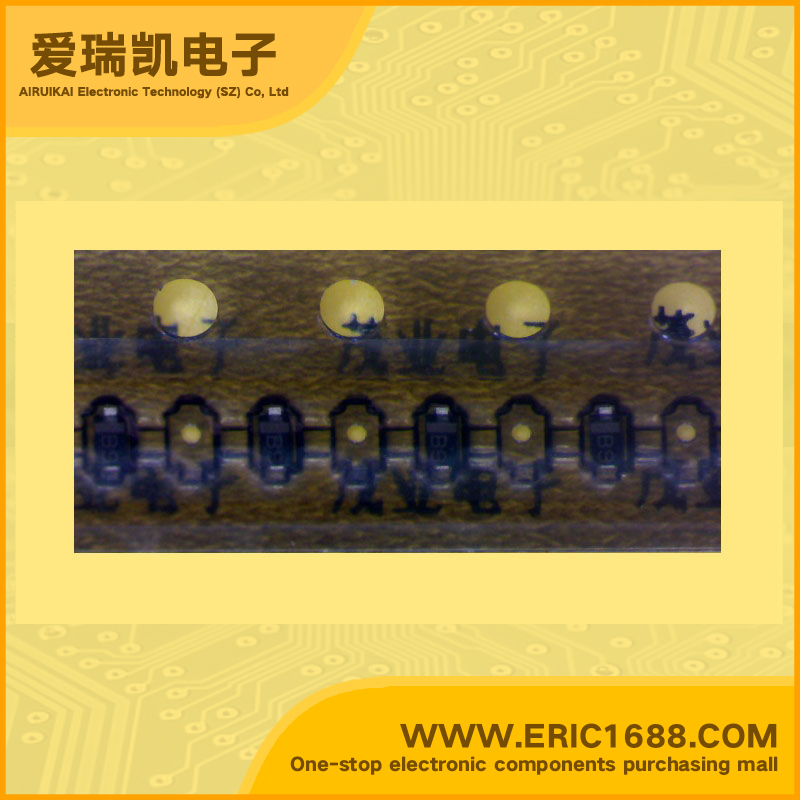

HVC376BTRF Variable Capacitance Diodes (Varicaps, Varactors) 15V 25.0pF—28.5pF 4.3 SOD-523/UFP/0603 marking b9 tuning/High capacitance ratio/Low Series Resistance/high Q value
| 反向电压VR Reverse Voltage | 15V |
| 电容值C Diode capacitance | 25.0pF—28.5pF |
| @反向电压VR @Reverse Voltage | 1V |
| 电容值C Diode capacitance | 4.80pF-6.80pF |
| @反向电压VR @Reverse Voltage | 4V |
| 电容比 Capacitance ratio | 4.3 |
| Description & Applications | Variable Capacitance Diode for VCO High capacitance ratio (n = 4.30) and good C-V linearity High Q circuit can be composed due to low series resistance. (rs = 0.8 Ω ) To be usable at low voltage Ultra small Flat Lead Package (UFP) is suitable for surface mount design |
| 描述与应用 | VCO的变容二极管 高电容率（N= 4.30）和良好的C-V线性 高Q值电路，可由于低串联电阻组成。 （RS= 0.8Ω） 要在低电压下也可以使用 超小型扁平引脚包装（UFP）适合于表面贴装设计 |
