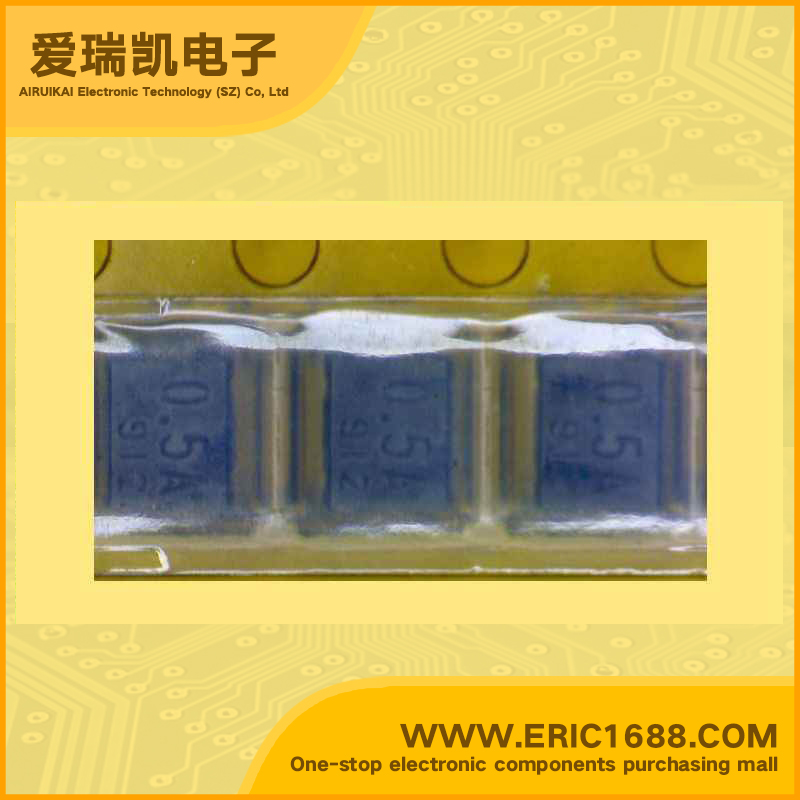

FUSE overcurrent protection ICP-S0.5TN 500mA/0.5A 1210-0.5A marking 0.5A
| 额定电流 Current Rating | 500mA/0.5A |
| 熔断能力 Interrupting Rating | |
| 额定电压 Voltage Rating | 50V |
| Description & Applications | Overcurrent Protection Elements The ICP-S is an IC protector of surface mounting type developed as an element for the protection of ICs from output short-circuiting damage. The internal resistance of this lightweight, compact overcurrent protection element is low, as long as the steady-state current of the element does not exceed the rated DC or AC current. The ICP-S, however, turns off ICs instantly if the steady-state current reaches or exceeds the breaking current of the ICP-S. Instantly breaks currents with a low potential drop. (See 3-1 Potential Drop Comparison) Compact surface-mounting model. (See 2. External Dimensions) Unlike fuses, there is no steady-state current reduction with the rated current applied. No derating is necessary. Minimal breaking point dispersion. (See the graph in 3-2 Breaking Current Dispersion Characteristics) Excellent temperature characteristics (See the graphs in 3-3 Temperature Characteristics) The fluctuation of the breaking current caused by temperature changes is minimal. Wide operating temperature range: -55°C to +125°C Excellent vibration resistance. UL-approved product with certification No. 107856. No deterioration or circuit breaking caused by static electricity. |
| 描述与应 | 过电流保护元件 ICP-S是表面安装型的IC保护器作为一个元素，以保护从输出的集成电路开发 短路损坏。此轻便，小巧的过电流保护元件的内部电阻低，只要 的元素的稳态电流不超过额定直流或交流电流。 ICP-S，然而，关闭芯片 如果稳态电流瞬间达到或超过ICP-S的开断电流。 瞬时电流中断（见3-1势掉落比较）具有低的电势降。 小型表面安装模式。 （见2。外形尺寸） 与保险丝不同，不存在稳态电流与额定电流降低。无降容是必要的。 最小断裂点分散。 （见图表3-2断电流分散 特性） 优良的温度特性（见图表3-3温度特性） 开断电流，温度变化引起的波动是最小的。 宽工作温度范围：-55°C至+125°C 优异的抗振动能力。 UL认证的产品，认证号：107856。 没有恶化或电路打破由静电引起的 |
