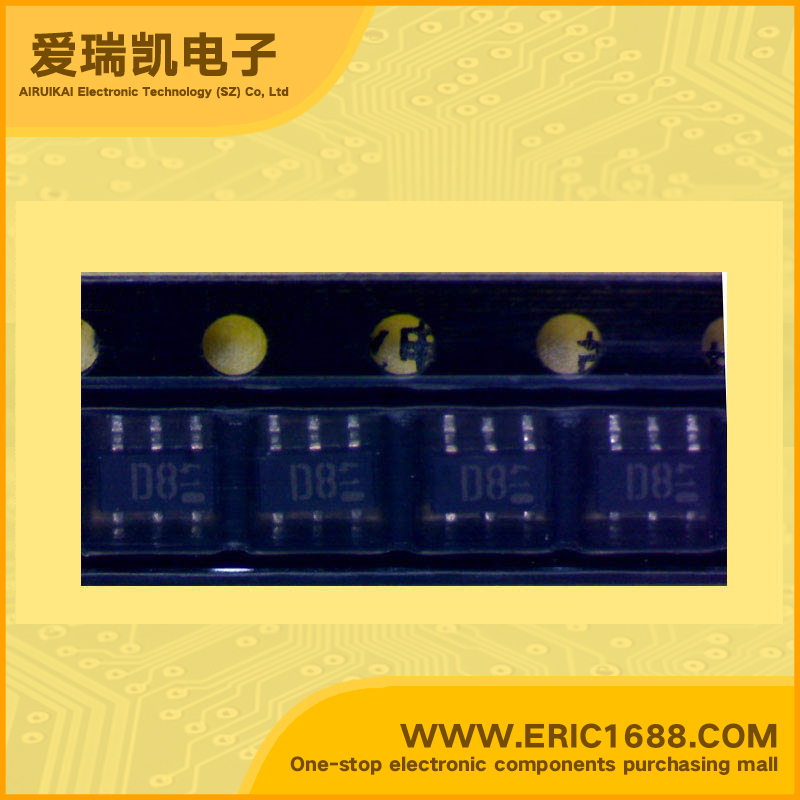

IMD8A NPN+PNP Complex Bipolar Digital Transistor 50V/-50V 100mA/-100mA 100~600 300mW/0.3W SOT-163/SMT6/SC-74 marking D8 switching inverting interface driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V/-50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V/-50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/-100mA |
| Q1基极输入电阻R1 Input Resistance(R1) | 47KΩ/Ohm |
| Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | |
| Q1电阻比(R1/R2) Q1 Resistance Ratio | |
| Q2基极输入电阻R1 Input Resistance(R1) | 47KΩ/Ohm |
| Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | |
| Q2电阻比(R1/R2) Q2 Resistance Ratio | |
| 直流电流增益hFE DC Current Gain(hFE) | 100~600 |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 耗散功率Pc Power Dissipation | 300mW/0.3W |
| Description & Applications | Features •Digital Transistor (Dual Digital Transistors for Inverter Drive) •Both the DTA144T chip and DTC144T chip in a SMT package. |
| 描述与应用 | 特点 •数字晶体管（双数字晶体管逆变器驱动） •两个DTA144T的芯片和DTC144T芯片在SMT包装。 |
