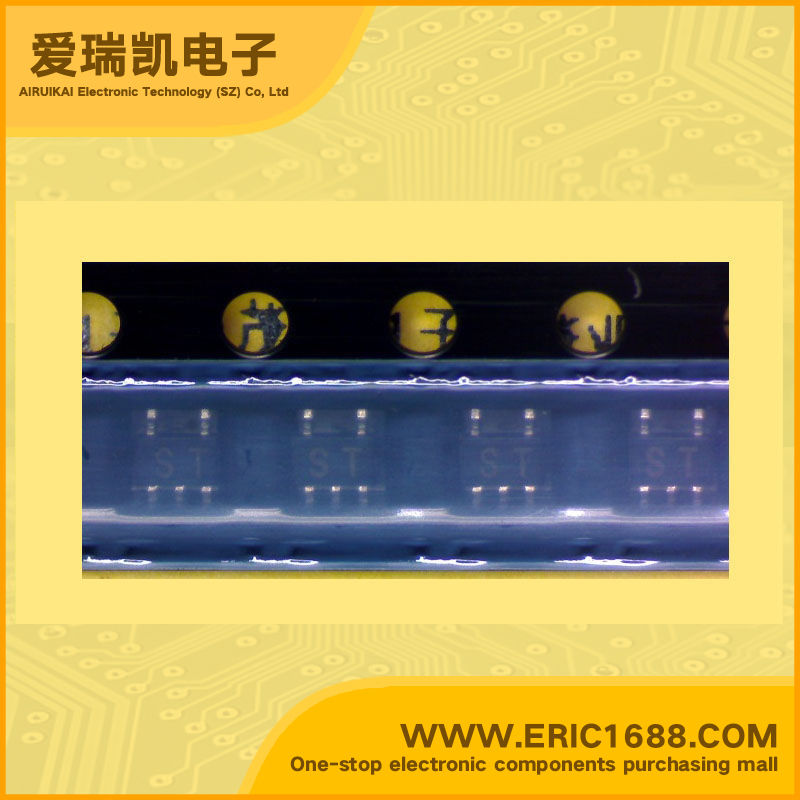

Integrated Circuit（IC） AND gate KIC7S08FU SOT-353/USV marking ST
| 逻辑类型 Logic Type | 与门 AND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2V~6V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -2.6mA，2.6mA |
| 低逻辑电平 Logic Level - Low | 0.5V~1.8V |
| 高逻辑电平 Logic Level - High | 1.5V~4.2V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 12ns @ 4.5V，50pF |
| Description & Applications | 2-input AND Gate；Features High speed Low power dissipation High noise capability Symmetrical output impedance Balanced propagation delays Wide operating voltage range |
| 描述与应用 | 双输入与门;特性 高速 低功耗 高抗噪声能力 对称的输出阻抗 平衡传输时延 宽工作电压范围 |
