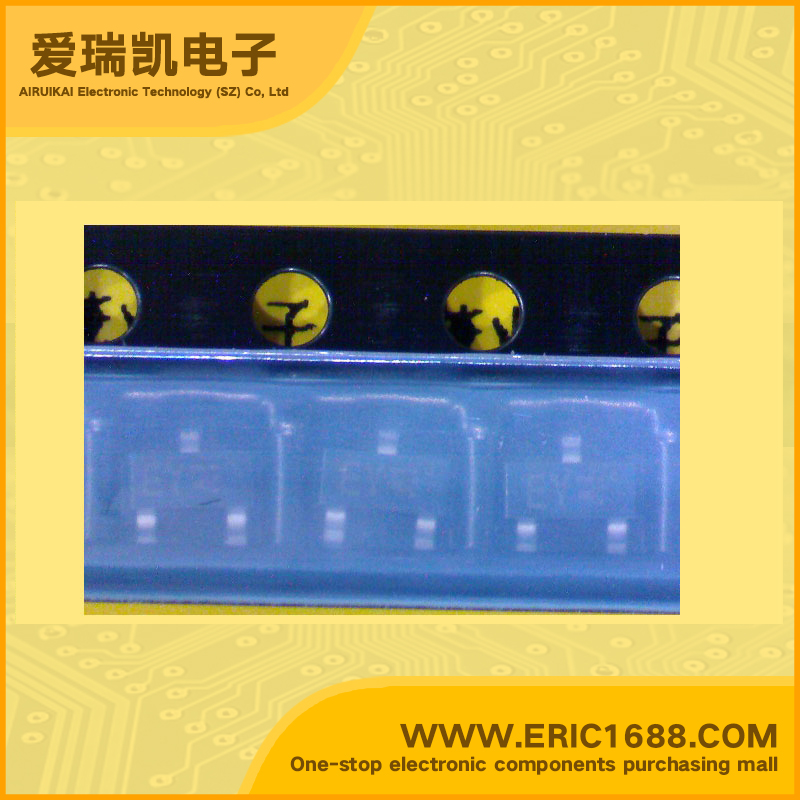

KTC3265-Y NPN Transistors(BJT) 35V 800mA/0.8A 120MHz 800~1600 500mV/0.5V SOT-23/SC-59 marking EY low frequency power amplifier powerswitch

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
35V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
30V
集电极连续输出电流IC
Collector Current(IC)
800mA/0.8A
截止频率fT
Transtion Frequency(fT)
120MHz
直流电流增益hFE
DC Current Gain(hFE)
160~320
管压降VCE(sat)
Collector-Emitter Saturation Voltage
500mV/0.5V
耗散功率Pc
Power Dissipation
200mW/0.2W
Description & ApplicationsLOW FREQUENCY POWER AMPLIFIER APPLICATION. POWER SWITCHING APPLICATION. FEATURES ·High DC Current Gain : hFE=100∼320. ·Low Saturation Voltage : VCE(sat) =0.4V(Max.) (IC=500mA, IB=20mA). ·Suitable for Driver Stage of Small Motor. ·Complementary to KTA1299. ·Small Package.
描述与应用LOW FREQUENCY POWER AMPLIFIER中的应用。 功率SWITCHING应用。 特点 ·High DC电流增益:HFE=100〜320。 ·低饱和电压 :VCE(sat)的 =0.4V(最大)(IC=500mA,可IB=20毫安)。 ·适用于小电机中的驱动器阶段的的。 ·互补来KTA1299。 ·体积小包装。
