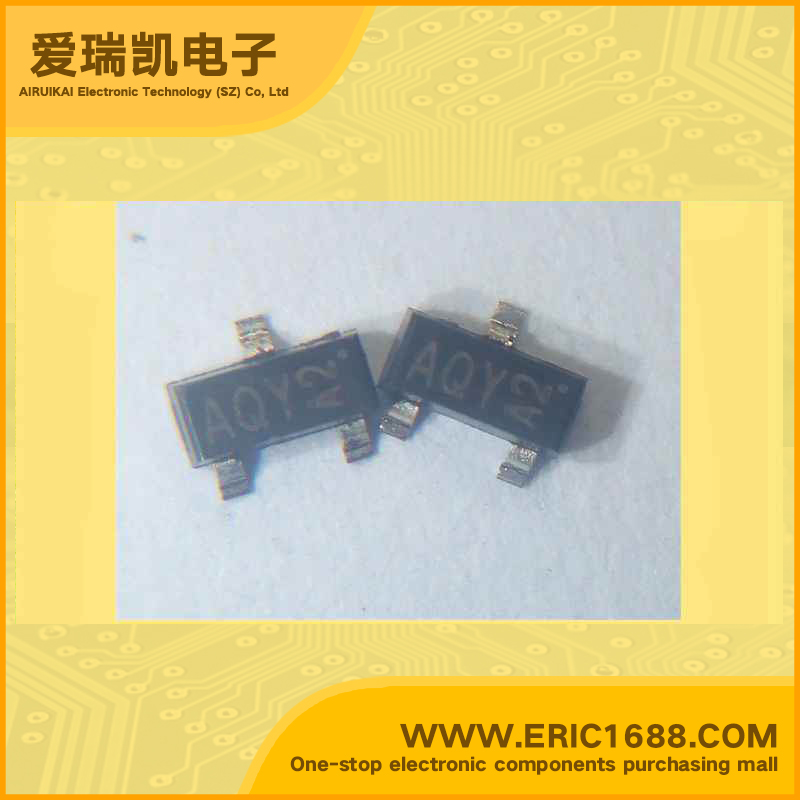

KTC3880S-Y NPN Transistors(BJT) 40V 20mA 550MHz 100~200 SOT-23/SC-59 marking AQY VHF band amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 40V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 30V |
| 集电极连续输出电流IC Collector Current(IC) | 20mA |
| 截止频率fT Transtion Frequency(fT) | 550MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 100~200 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | HIGH FREQUENCY LOW NOISE AMPLIFIER APPLICATION. VHF BAND AMPLIFIER APPLICATION. FEATURES Small Reverse Transfer Capacitance : Cre =0.7pF(Typ.) Low Noise Figure : NF=2.5dB(Typ.) (f=101MHz) |
| 描述与应用 | 高频低噪声放大器应用。 VHF频带放大器应用。 特点 小反向传输电容 ：CRE =的0.7 pF（典型值） 低噪声系数：NF=2.5dB“（典型值）（F =101MHz时） |
