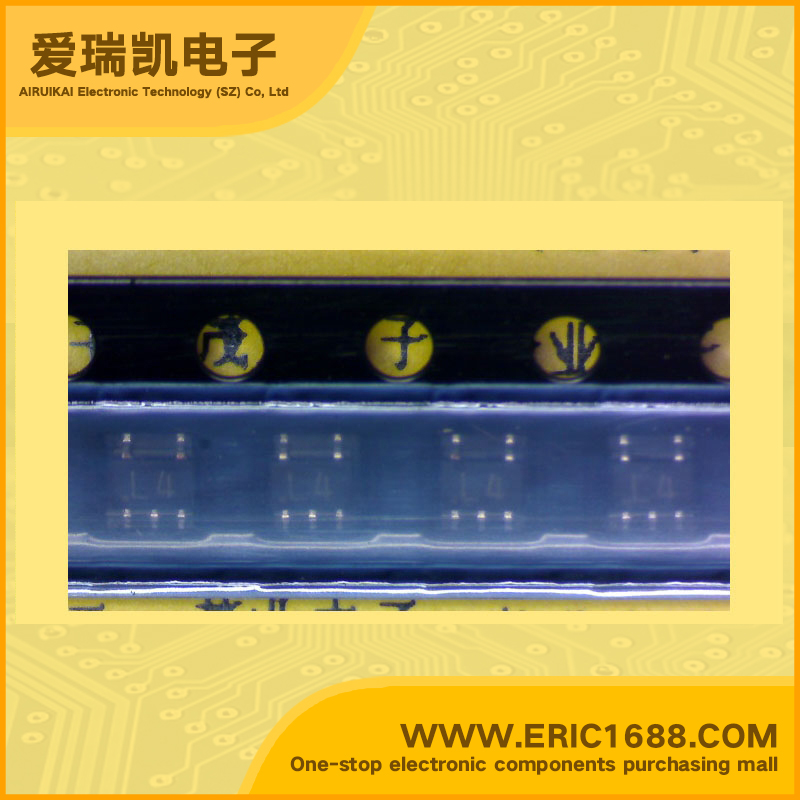

KTC601U-Y NPN+NPN Complex Bipolar Transistor 60V 150mA HEF=120~240 SOT-363/US6 marking L4 switch and digital circuit application
|
V(BR) CBO Collector-Base Voltage |
60V |
|
V(BR) CEO Collector-Emitter Voltage |
50V |
| Collector Current(IC) | 150MA |
| Transtion Frequency(fT) | 80MHZ |
| DC Current Gain(hFE) | 120~240 |
|
VCE (sat) Collector-Emitter Saturation Voltage |
0.25V |
| Power Dissipation （Pd） | 0.2W |
| Description & Applications | GENERAL PURPOSE APPLICATION.
SWITCHING APPLICATION.
FEATURES
·A super-minimold package houses 2 transistor.
·Excellent temperature response between these 2 transistor.
·High pairing property in hFE.
·The follwing characteristics are common for Q1, Q2.
|
