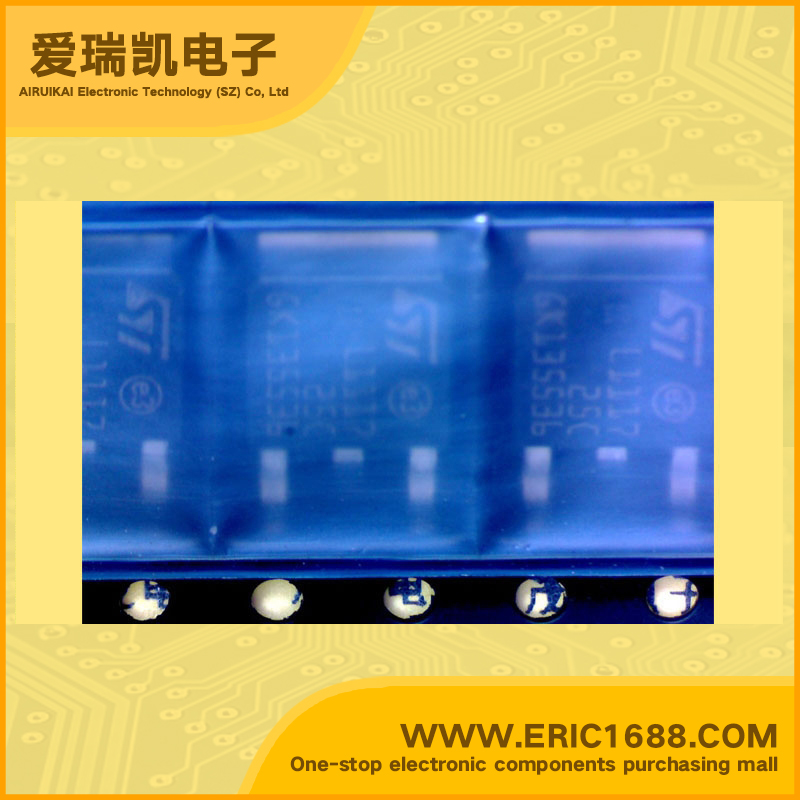

LD1117DT25CTR LDO Voltage Regulator 2.5V 1.1V TO-252 marking LD111725C Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 15V |
| 输出电压VOUT Voltage - Output | 2.5V |
| 输出电流Io Current - Output | 800mA/0.8A |
| 最大压降VDO Voltage - Dropout | 1.1V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 12W |
| Description & Applications | Low drop fixed and adjustable positive voltage regulators ;•Low dropout voltage (1V TYP.) •Output current up to 800 mA •Adjustable version availability (Vrel =1.25V) • Internal current and thermal limit •Available in ± 1% (at 25°C) and 2% in full temperature range • Supply voltage rejection: 75dB (typ.) |
| 描述与应用 | 低压降固定和可调正电压稳压器;•低压差电压（1V TYP。） •输出电流高达800毫安 •可调版本的可用性（VREL =1.25V） •内部电流和热限制 •可在±1％（在25°C）和全面的2％ 温度范围 •电源电压抑制比：75dB（典型值） |
