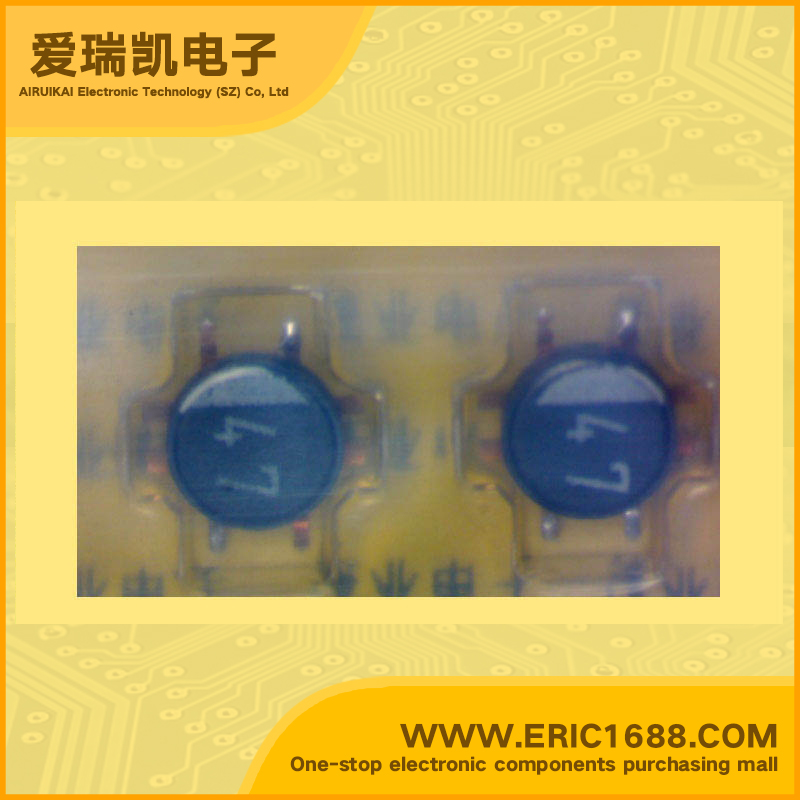

power conductor LDR655312T-470 47uH 6M-470

Hot selling goods

Product description
Q值
Q Value
电感值
Inductance
47uH
误差
Tolerance
± 20%
额定电流
Current Rating
340mA
饱和电流
Current - Saturation
DC电阻DCR
DC Resistance (DCR)
1.38Ω/Ohm
Description & ApplicationsFEATURES • The first low height realized by using new magnetic material superior in superimposed DC current characteristics with high specific resistance and by adopting a design in which a lead frame is directly bonded. • Mountable on the back side of the LCD surface because of low height type (1.20mm max.). • Low leakage flux drum core with original design applied. • Size equivalent to a half of a conventional core having the same characteristics realized, thus enabling light weight (0.1g max.). • Automatic inserter usable in taping specifications. • All terminals are welded without lead. APPLICATIONS LCD driving circuits (DC-DC converters) such as notebook-sized personal computers, portable terminal equipment, game units
描述与应用特点 •第一个实现高度低,通过采用新的磁性材料 优秀叠加的直流电流特性与高 比电阻和通过一个设计,其中的引线 帧的直接键合。 安装在LCD的表面,因为低的背面侧 高度型(最大1.20毫米。)。 •低漏磁通鼓与原设计的核心应用。 大小相当于一个传统的核心具有相同的半 特性实现,从而使重量轻(最大0.1克。)。 •自动插入录音规格可用。 •所有端子焊接不含铅。 应用 液晶驱动电路(DC-DC转换器),如笔记本大小的 个人计算机,便携式终端设备,
