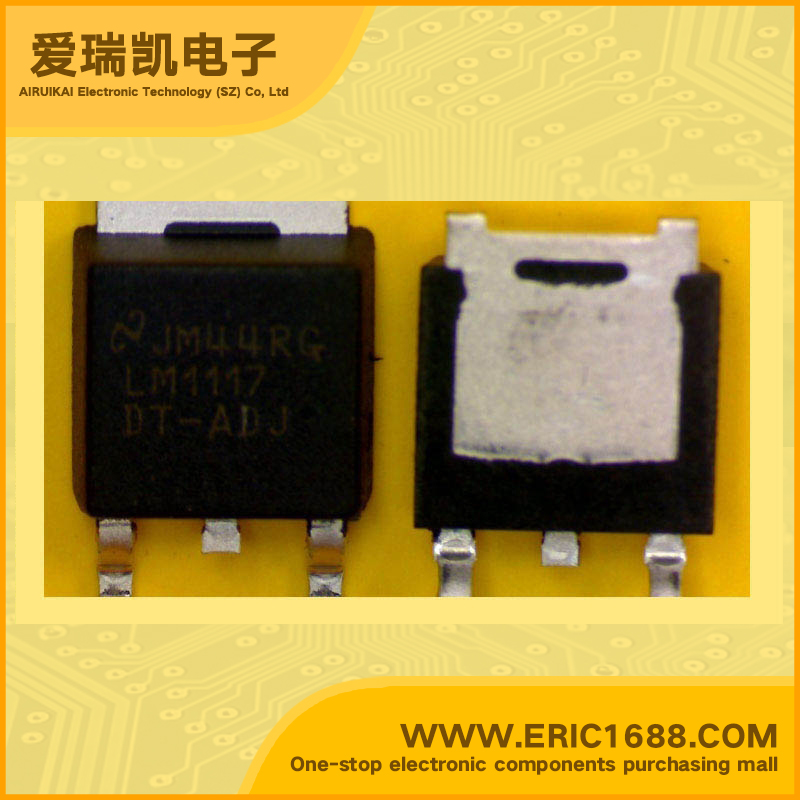

LM1117DTX-ADJ LDO Voltage Regulator Adjustable 1.2V TO-252 marking LM1117-ADJ Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
20V
输出电压VOUT
Voltage - Output
可调/adj
输出电流Io
Current - Output
800mA/0.8A
最大压降VDO
Voltage - Dropout
1.2V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
Description & Applications800mA Low-Dropout Linear Regulator ;•Space Saving SOT-223 and LLP Packages •Current Limiting and Thermal Protection • Output Current 800mA • Line Regulation 0.2% (Max) •Load Regulation 0.4% (Max) • Temperature Range — LM1117 0˚C to 125˚C — LM1117I −40˚C to 125˚C • Post Regulator for Switching DC/DC Converter •High Efficiency Linear Regulators • Battery Charger • Battery Powered Instrumentation
描述与应用800mA低压降线性稳压器;•节省空间的SOT-223和LLP封装 •电流限制和热保护 •输出电流800mA 线路调整率0.2%(最大值) •负载调整率0.4%(最大值) •温度范围 - LM11170˚C至125˚C - LM1117I-40˚C至125˚C •后稳压开关DC/ DC转换器 •高效率线性稳压器 •电池充电器 •电池供电的仪器
