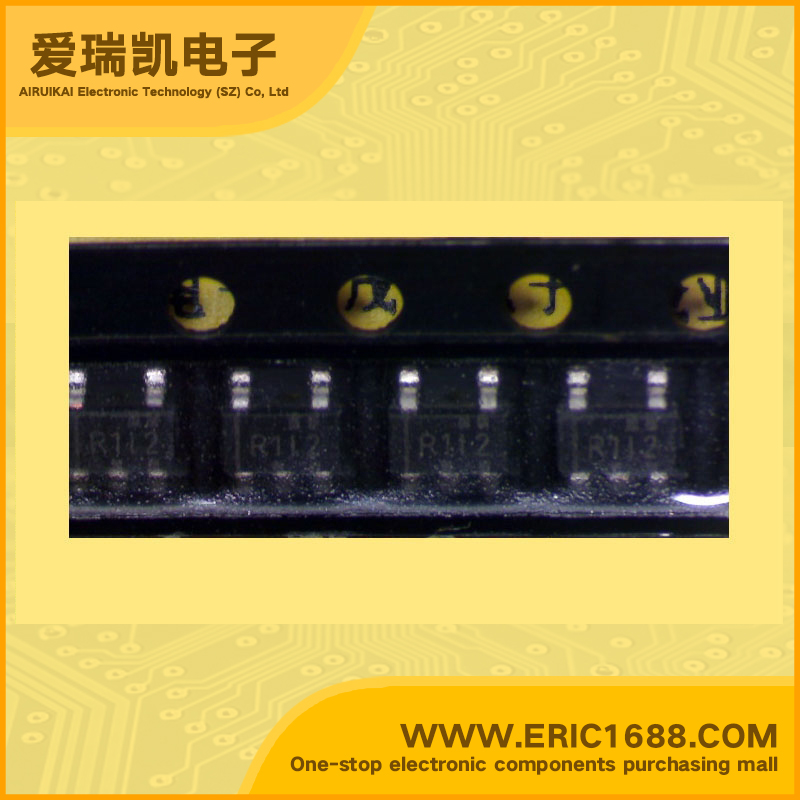

comparator LMV331IDBV SOT-153/SOT23-5/SC-74A marking R112

Hot selling goods

Product description
类型
Type
通用 General Purpose
元件数
Number of Elements
1
输出类型
Output Type
开路集电极 Open Collector
电源电压,单/双 (±)
Voltage - Supply, Single/Dual (±)
2.7 V ~ 5.5 V
输入失调电压(最大值)
Voltage - Input Offset (Max)
7mV
输入偏置电流(最大值)
Current - Input Bias (Max)
0.25µA
输出电流(典型值)
Current - Output (Typ)
84mA
静态电流(最大值)
Current - Quiescent (Max)
150µA
CMRR,PSRR(典型值)
CMRR, PSRR (Typ)
传播延迟(最大值)
Propagation Delay (Max)
600ns
滞后
Hysteresis
Description & ApplicationsFEATURES • General Purpose, Low Voltage, TinyPack Comparators • Space Saving SC70-5 Package (2.0 x 2.1 x 1.0mm) • Space Saving SOT23-5 Package (3.00 x 3.01 x1.43 mm) • Guaranteed 2.7V and 5V Performance • Industrial Temperature Range −40˚C to +85˚C • Low Supply Current 60µA/Channel • Input Common Mode Voltage Range Includes Ground • Low Output Saturation Voltage 200 mV Applications • Mobile Communications • Notebooks and PDA’s • Battery Powered Electronics • General Purpose Portable Device • General Purpose Low Voltage Applications
描述与应用特点 •通用,低电压,微小的包装比较 •节省空间SC70-5封装(2.0×2.1×1.0毫米) •节省空间的SOT23-5封装(3.00×3.01 x1.43毫米) •保证2.7V和5V表现 •工业温度范围-40˚C至+85˚C •低电源电流60μA/Channel •输入共模电压范围包括地 •低输出饱和电压200 mV的 应用 •移动通信 •笔记本电脑和PDA •电池供电的电子产品 •通用便携式设备 •通用低电压应用
