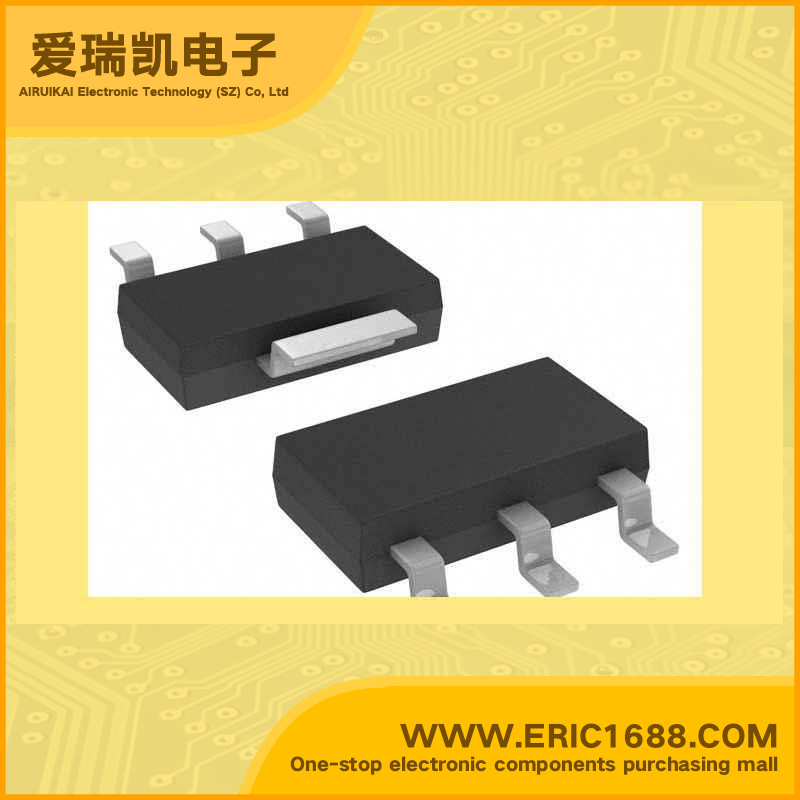

LP3965EMP-ADJ LDO Voltage Regulator Adjustable 380mV/0.38V SOT-223 marking LBRB Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 2.5~7V |
| 输出电压VOUT Voltage - Output | 可调/adj |
| 输出电流Io Current - Output | 150mA/0.15A |
| 最大压降VDO Voltage - Dropout | 380mV/0.38V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | 1.5A Fast Ultra Low Dropout Linear Regulators ;•Ultra low dropout voltage •Low ground pin current •Load regulation of 0.04% •15µA quiescent current in shutdown mode • Guaranteed output current of 1.5A DC •Output voltage accuracy ± 1.5% •Error flag indicates output status (LP3962) • Sense option improves better load regulation (LP3965) • Extremely low output capacitor requirements • Overtemperature/overcurrent protection • −40˚C to +125˚C junction temperature range • Microprocessor power supplies •GTL, GTL+, BTL, and SSTL bus terminators •Power supplies for DSPs •SCSI terminator •Post regulators •High efficiency linear regulators •Battery chargers •Other battery powered applications |
| 描述与应用 | 1.5A快速超低压差线性稳压器;•超低压差电压 •低接地引脚电流 •负载调整率0.04％ •15μA静态电流关断模式 •保证输出电流为1.5A DC •输出电压精度±1.5％ •错误标志指示输出状态（LP3962） •检测选项可提高更好的负载调节（LP3965） •极低的输出电容的要求 •过热/过流保护 •-40˚C至+125˚C的结温范围内 •微处理器电源 •GTL，GTL+，BTL，和SSTL总线终结 •电源的DSP •SCSI终结 •邮政监管机构 •高效率线性稳压器 •电池充电器 •其他电池供电的应用 |
