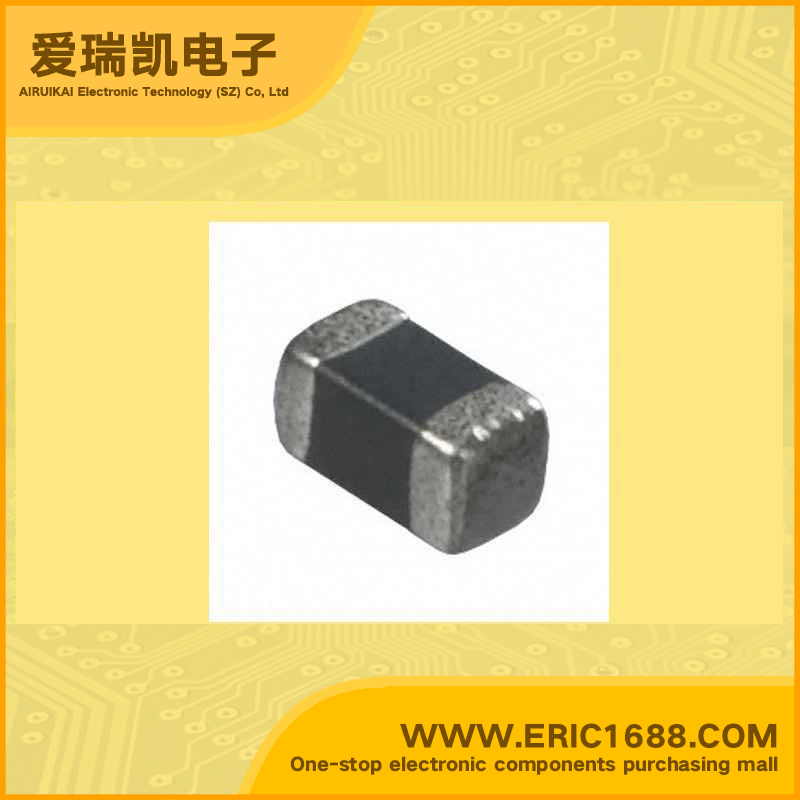

low power inductor LQM18NNR82K00D 820nH/0.82UH 0603-R82K
| 电感值 Inductance | 820nH/0.82UH |
| 误差 Tolerance | ±10% |
| 额定电流 Current Rating | 35mA |
| 饱和电流 Current - Saturation | |
| 不同频率时的Q值 Q @ Frequency | 15 @ 25MHz |
| 自振谐频率SRF Frequency - Self Resonant | 85MHz |
| DC电阻DCR DC Resistance (DCR) | 2.10Ω/Ohm |
| 屏蔽 Shielding | 屏蔽 Shielded |
| Description & Applications | LQM18N Series The LQM18N series of magnetically shielded chip coils was developed by using original multilayer process technology and magnetic materials. Compact size is suitable for high density mounting. Shielded construction is not affected by interference from peripheral components. Features 1. Magnetically shielded structure provides excellent characteristics in crosstalk and magnetic coupling. 2. Compact size (1.6x0.8mm) and light weight 3. The external electrodes with nickel barrier structure provide excellent solder heat resistance. Both flow and reflow soldering can be applicable. |
| 描述与应用 | LQM18N系列 防磁芯片线圈LQM18N系列开发使用原来的多层工艺技术和磁性材料。 特点 1。防磁结构提供优异的抗干扰特性和磁性耦合。 2。紧凑的尺寸（1.6×0.8mm的），重量轻 3。镍隔板结构为外部电极提供优良的焊接耐热性。流量和回流焊接可以适用。 |
