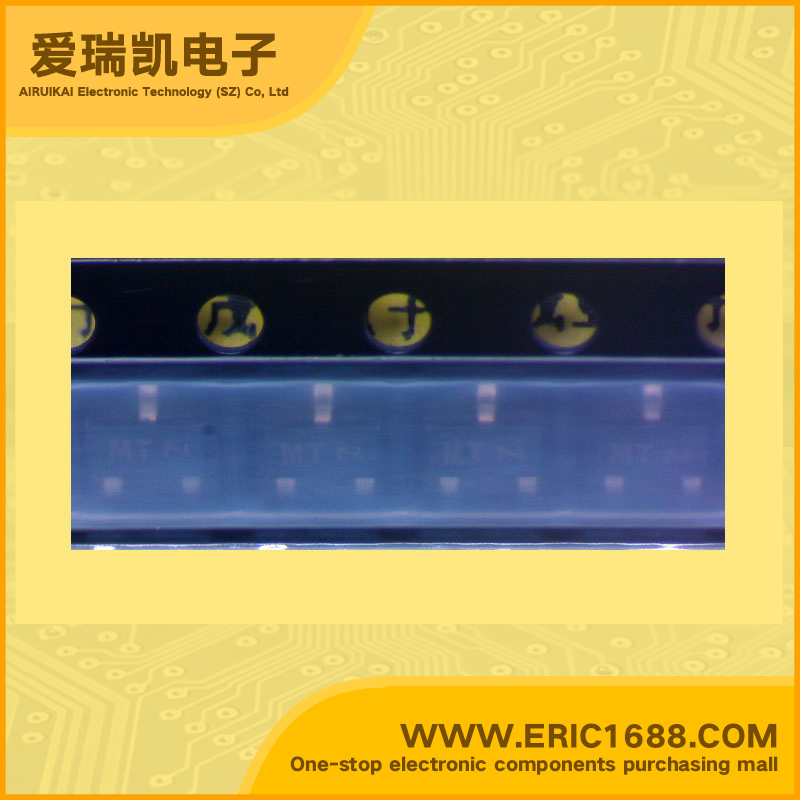

m1mA151WKT1 1 PAir Common cathode Switching Diodes 40V 150mA/0.15A SOT-23/SC-59 marking mT ultra highspeed switch

Hot selling goods

Product description
反向电压Vr
Reverse Voltage
40V
平均整流电流Io
Average Rectified Current
150mA/0.15A
最大正向压降VF
Forward Voltage(Vf)
1.2V
反向恢复时间Trr
Reverse Recovery Time
3.0ns
最大耗散功率Pd
Power Dissipation
200mW/0.2W
Description & ApplicationsCommon CAthode Silicon DuAl Switching Diodes These Common CAthode Silicon EpitAxiAl PlAnAr DuAl Diodes Are designed for use in ultrA high speed switching ApplicAtions. These deVices Are housed in the SC–59 pAckAge which is designed for low power surfAce mount ApplicAtions. • FAst trr < 3.0 ns • Low CD, < 2.0 pF • AVAilAble in 8 mm TApe And Reel Use m1mA151/2WKT1 to order the 7 inch/3000 unit reel. Use m1mA151/2WKT3 to order the 13 inch/10,000 unit reel
描述与应用•共阴极硅双开关二极管 •超高速开关应用。 •专用低功率表面贴装应用。 •反向恢复时间快 Trr<3 ns, •低电容 CD<2 pF
