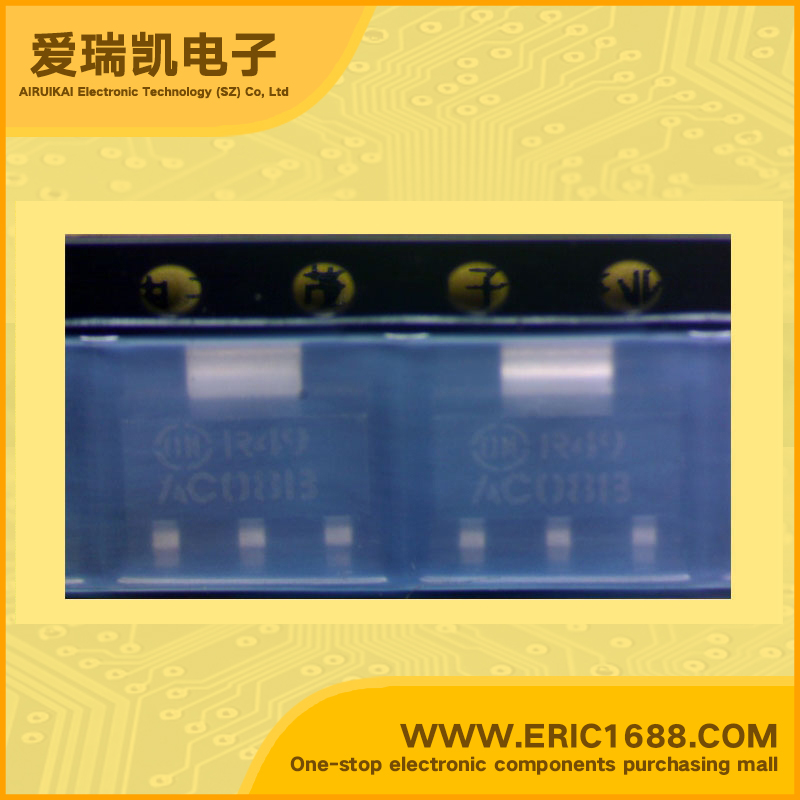

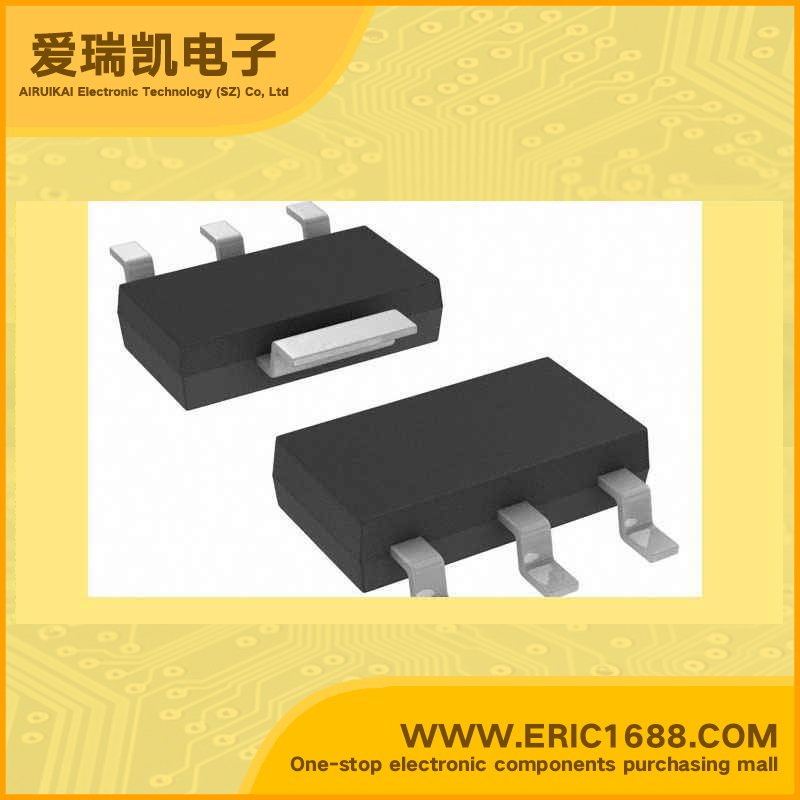

Triac MAC08BT1 SOT-223 marking AC08B
| 反向重复峰值电压VRRM/断态重复峰值电压VDRM Repetitive peak reverse voltage/Repetitive peak off-state voltage | 200V |
| 通态最大电流IT(RMS) RMS on-state current | 0.8A |
| 栅极触发电压VGT Gate trigger voltage | 2V |
| 栅极触发电流IGT Gate trigger current | 10mA |
| 保持电流IH Holding current | 5mA |
| 浪涌电流ITSM(50Hz、60Hz) Current - Non Rep. Surge 50, 60Hz (Itsm) | 8A |
| Description & Applications | Sensitive Gate Triacs Silicon Bidirectional Thyristors Designed for use in solid state relays, MPU interface, TTL logic and other light industrial or consumer applications. Supplied in surfacemount package for use in automated manufacturing Sensitive Gate Trigger Current in Four Trigger Modes Blocking Voltage to 600 Volts Glass Passivated Surface for Reliability and Uniformity Surface Mount Package Pb−Free Packages are Available |
| 描述与应用 | 敏感的门双向可控硅 硅双向晶闸管 专为固态继电器，MPU接口，TTL逻辑等轻型工业或消费类应用中使用,提供用于自动化生产的表面贴装封装 敏感的门触发电流中的四种触发方式 阻断电压600伏特 玻璃表面钝化的可靠性和一致性 表面贴装封装 提供无铅封装 |
