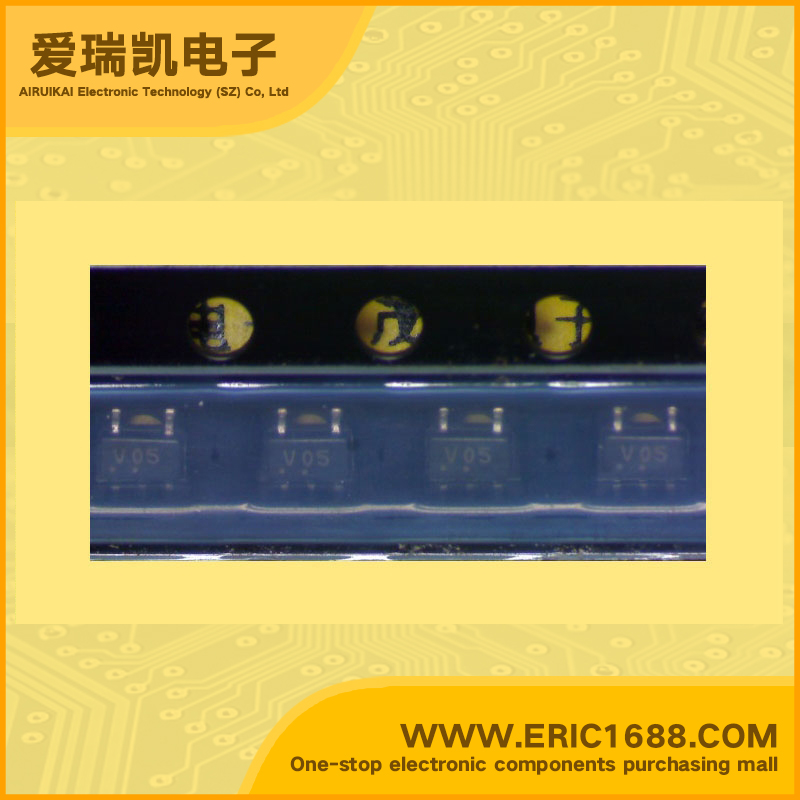

Integrated Circuit(IC) NAND gate MC74VHC1G01DFT2G SOT-353/SC-88A/SC70-5 marking VOS

Hot selling goods

Product description
逻辑类型
Logic Type
与非门 NAND Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2V~5.5V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.5V~1.65V
高逻辑电平
Logic Level - High
1.5V~3.85V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
7.5ns @ 5V,50pF
Description & ApplicationsSingle 2−Input NAND Gate with Open Drain Output ;Features High Speed: tPD = 3.7ns (Typ) at VCC = 5V Low Internal Power Dissipation: ICC = 2µA (Max) @TA = 25°C Power Down Protection Provided on Inputs Pin and Function Compatible with Other Standard Logic Families Latchup Performance Exceeds 300mA ESD Performance: HBM > 2000V; MM > 200V, CDM > 1500V
描述与应用单路2输入与非门 开漏输出;特性 高速:TPD =3.7ns(典型值),VCC = 5V时 内部功耗:ICC=2μA(最大值)@ TA= 25°C 掉电保护的输入端 引脚和功能兼容与其他标准逻辑系列 闭锁性能超过300mA ESD性能:HBM> 2000V; MM> 200V,CDM>1500V
