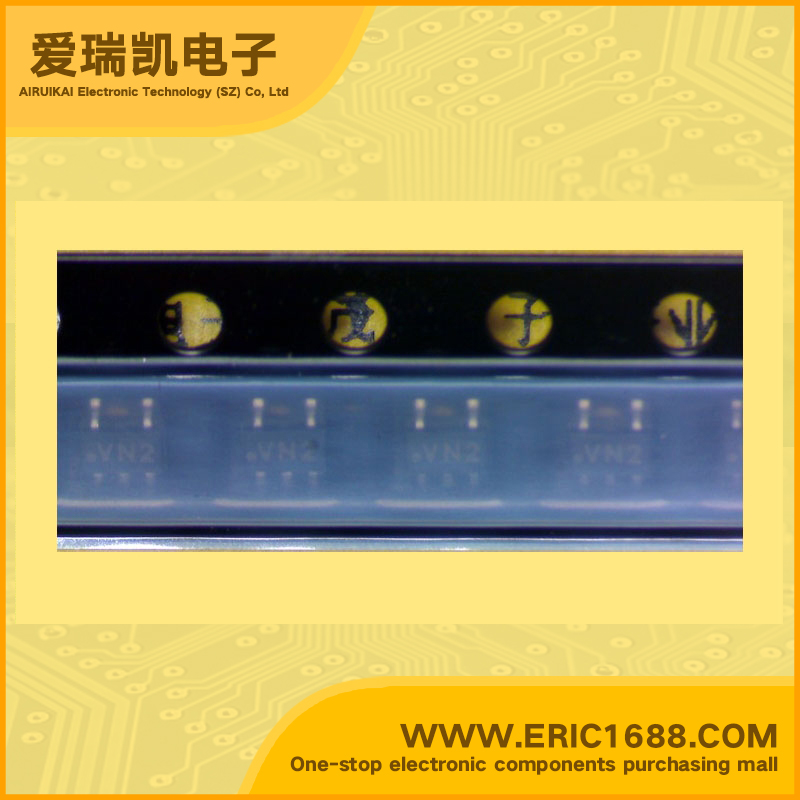

Integrated Circuit（IC） OR gate MC74VHC1GT32DFT2 SOT-353/SC-88A/SC70-5 marking VN2
| 逻辑类型 Logic Type | 或门 OR Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 3V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 2uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA，8mA |
| 低逻辑电平 Logic Level - Low | 0.53V~0.8V |
| 高逻辑电平 Logic Level - High | 1.4V~2V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 4.4ns @ 4.5V~5.5V，50pF |
| Description & Applications | 2−Input OR Gate/CMOS Logic Level Shifter；Features High Speed: tPD = 3.5ns (Typ) @VCC = 5.0 V Low Power Dissipation: ICC = 2uA (Max) @TA = 25°C TTL−Compatible Inputs: VIL = 0.8 V; VIH = 2.0 V CMOS−Compatible Outputs: VOH > 0.8 VCC; VOL < 0.1 VCC @ Load Power Down Protection Provided on Inputs and Outputs Balanced Propagation Delays Pin and Function Compatible with Other Standard Logic Families Chip Complexity: FETs = 65; Equivalent Gates = 15 Pb−Free Package is Available |
| 描述与应用 | 2输入或门/ CMOS逻辑电平转换器;特性 高速：TPD =3.5ns的（典型值）@ VCC=5.0 V 低功耗：ICC=2μA（最大值）@ TA= 25°C TTL兼容的输入：VIL=0.8 V; VIH=2.0 V CMOS兼容输出：VOH> 0.8 VCC VOL<0.1 VCC@负载 掉电保护提供输入和输出 平衡传输延时 引脚和功能兼容与其他标准逻辑系列 芯片的复杂度：晶体管数=65;等效门= 15 无铅包装可用 |
