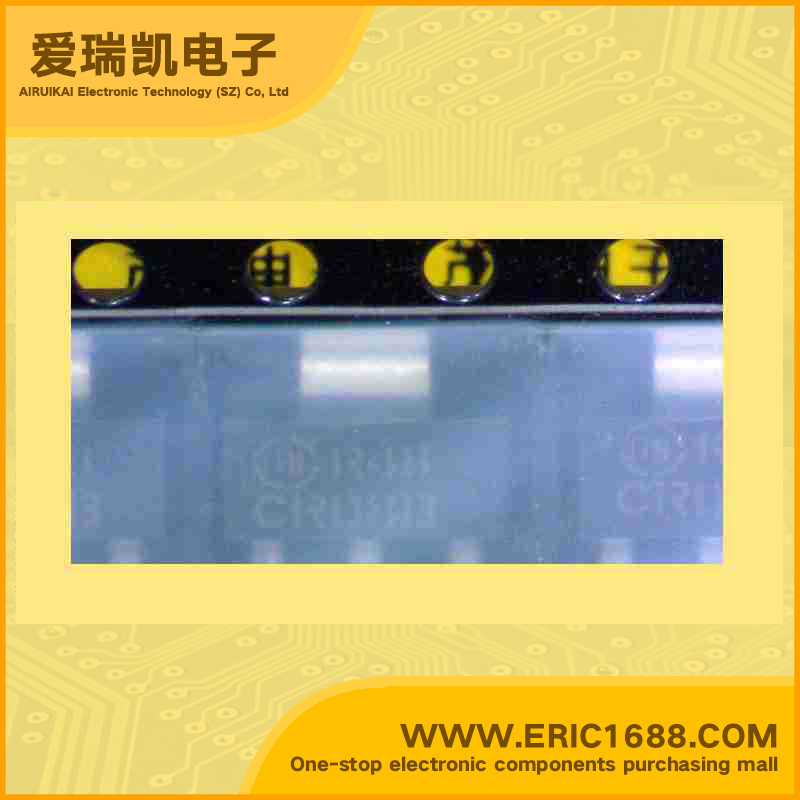

Thyristor,SCR MCR08BT1 0.8V 5mA SOT-223
| 反向重复峰值电压VRRM/断态重复峰值电压VDRM Repetitive peak reverse voltage/Repetitive peak off-state voltage | 200V |
| 通态平均电流IT(AV) Average on-state current | |
| 通态最大电流IT(RMS) RMS on-state current | 0.8A |
| 栅极触发电压VGT Gate trigger voltage | 0.8V |
| 栅极触发电流IGT Gate trigger current | 200μA |
| 保持电流IH Holding current | 5mA |
| 峰值通态电压VTM On-state voltage | 1.7V |
| 重复峰值断态电流IDRM Repetitive peak off-state current | 10μA |
| 浪涌电流ITSM(50Hz、60Hz) Current - Non Rep. Surge 50, 60Hz (Itsm) | 8A |
| Description & Applications | Sensitive Gate Silicon Controlled Rectifiers Sensitive Gate Trigger Current Blocking Voltage to 600 V Glass Passivated Surface for Reliability and Uniformity Surface Mount Package Pb−Free Packages are Available |
| 描述与应用 | 敏感栅 可控硅整流器 敏感的门触发电流 阻断电压为600 V 玻璃表面钝化的可靠性和一致性 表面贴装封装 提供无铅封装 |
