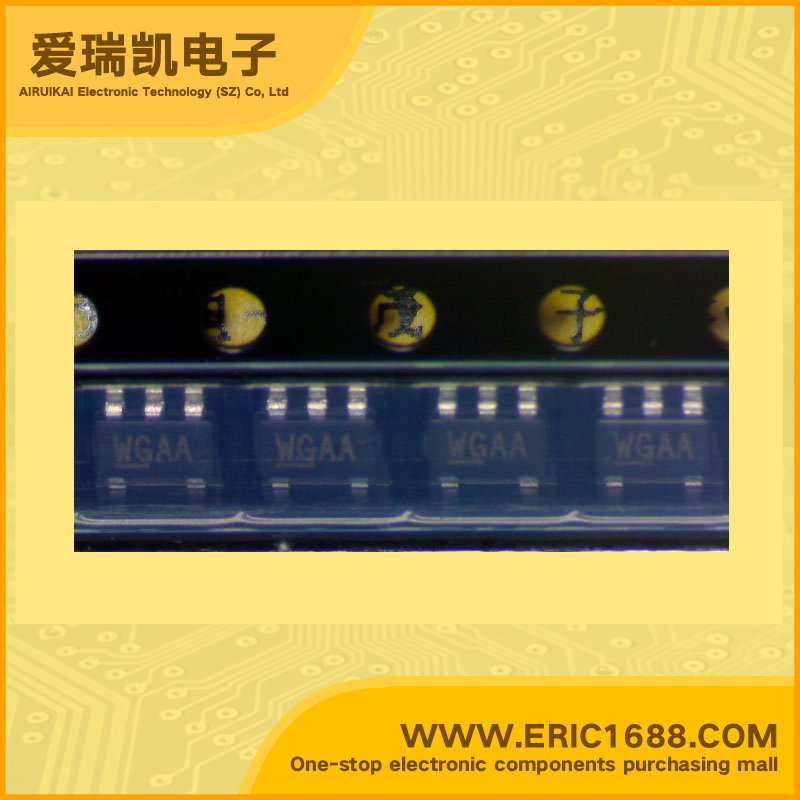

MIC3287YD5TR Constant Current LED Driver PWM,boost Backlight, Flash/Torch 1MHz ~ 1.4MHz 2.8V ~ 6.5V 36V SOT-153/SOT23-5 WGAA

Hot selling goods

Product description
恒流
Constant Current
是 YES
恒压
Constant Voltage
拓扑
Topology
PWM,升压(升压) PWM, Step-Up (Boost)
输出数
Number of Outputs
1
内部驱动器
Internal Driver
是 YES
初级类型
Type - Primary
背光,闪灯/白光 Backlight, Flash/Torch
次级类型
Type - Secondary
白色 LED White LED
频率
Frequency
1MHz ~ 1.4MHz
电源电压
Voltage - Supply
2.8V ~ 6.5V
输出电压
Voltage - Output
36V
Description & ApplicationsFEATURES • 1.2 MHz PWM white LED driver with OVP in thin SOT-23 and 2mm × 2mm MLF® • 2.8V to 6.5V input voltage • 350mA switch current • 1.2 MHz PWM operation • up to 36V output voltage without OVP • <1% line and load regulation • optional 24V output over-voltage protection (OVP) • <1µA shutdown current • Overtemperature protection • UVLO • 2mm × 2mm 8-pin MLF® package • –40°C to +125°C junction temperature range Applications • White LED driver for backlighting: – Cell phones – PDAs – GPS systems – Digital cameras – MP3 players – IP phones • LED flashlights • Constant current power supplies
描述与应用特点 •1.2 MHz的PWM白光LED驱动器具有OVP在超薄SOT-23和2mm×2mm的MLF® •2.8V至6.5V的输入电压 •350毫安开关电流 •1.2 MHz的PWM操作 •高达36V的输出电压,而无需OVP <1%的线路和负载调节 •可选24V输出过电压保护(OVP) •<1μA的关机电流 •过热保护 •UVLO •2毫米×2毫米8引脚MLF®封装 •-40°C至+125°C的结温范围 应用 •白色背光LED驱动器: - 手机 - 掌上电脑 - GPS定位系统 - 数码相机 - MP3播放器 - IP电话 •LED手电筒 •恒流电源
