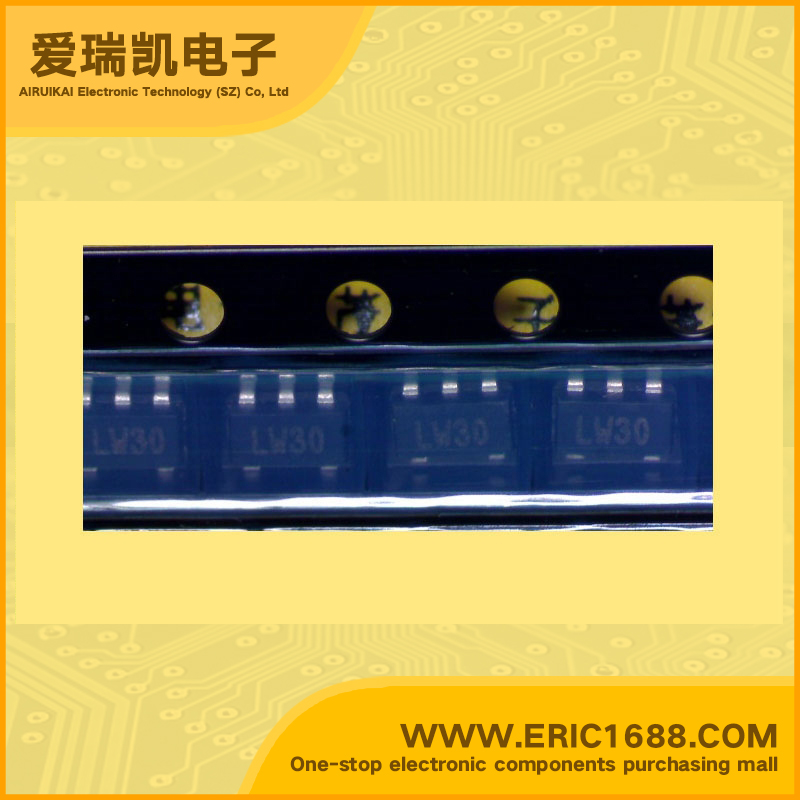

MIC5255-3.0BM5TR LDO Voltage Regulator 3V 135mV/0.135V With Enable Pin SOT-153/SOT23-5 marking LW30 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 2.7~6V |
| 输出电压VOUT Voltage - Output | 3V |
| 输出电流Io Current - Output | 150mA/0.15A |
| 最大压降VDO Voltage - Dropout | 135mV/0.135V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | 150mA Low Noise µCap CMOS LDO ;•Input voltage range: 2.7V to 6.0V • Ultra-low output noise: 30µV(rms) • Stability with ceramic output capacitors • Ultra-low dropout: 135mV @ 150mA • High output accuracy: – 1.0% initial accuracy – 2.0% over temperature • Low quiescent current: 90µA • Tight load and line regulation • TTL-Logic-controlled enable input • “Zero” off-mode current • Thermal shutdown and current limit protection • Cellular phones and pagers • Cellular accessories • Battery-powered equipment • Laptop, notebook, and palmtop computers • Consumer/personal electronics |
| 描述与应用 | 150MA CMOS低噪声LDOμCap;•输入电压范围：2.7V至6.0V •超低输出噪声：30μV（RMS） •与陶瓷输出电容的稳定性 •超低压降为135mV@150MA •高输出精度： - 1.0％的初始精度 - 2.0％温度 •低静态电流：90μA •精确的负载和线路调节 •TTL逻辑控制使能输入 •“零”关机模式电流 •热停机和电流限制保护 •蜂窝电话和寻呼机 •手机配件 •电池供电设备 •笔记本电脑，笔记本电脑，掌上型电脑 •消费品/个人电子产品 |
