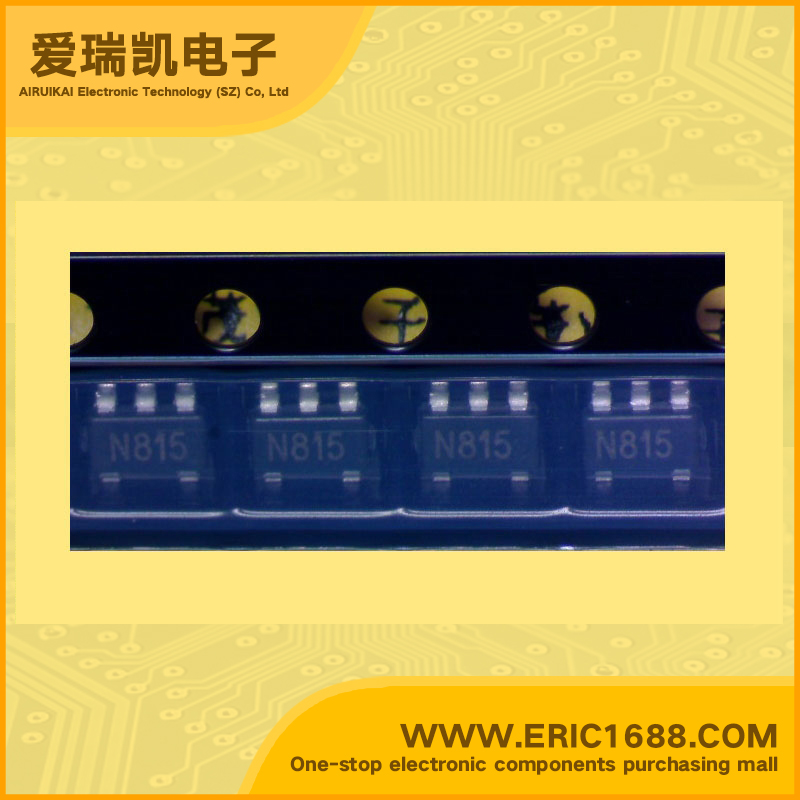

MIC5305-1.5BD5TR LDO Voltage Regulator 1.5V 85mV SOT-153/SOT23-5 marking N815 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 2.25~5.5V |
| 输出电压VOUT Voltage - Output | 1.5V |
| 输出电流Io Current - Output | 150mA/0.15A |
| 最大压降VDO Voltage - Dropout | 85mV |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | 150mA µCap Ultra-Low Dropout LDO Regulator ;•Ultra-low dropout voltage of 60mV @ 150mA • Input voltage range: 2.25 to 5.5V • Stable with ceramic output capacitor • 150mA guaranteed output current • Low output noise — 20µVrms • Low quiescent current of 90µA total • High PSRR, up to 85dB @1kHz • Less than 30µs turn-on time w/CBYP = 0.01µF • High output accuracy: – ±1.0% initial accuracy – ±2.0% over temperature • Thermal shutdown protection • Current limit protection • Cellular phones • PDAs • Fiber optic modules • Portable electronics • Notebook PCs • Audio Codec power supplies |
| 描述与应用 | 150MAμCap超低压差 LDO稳压器;•超低压降电压60mV的@150MA •输入电压范围：2.25至5.5V •与陶瓷输出电容稳定 •保证150mA输出电流 •低输出噪声 - 20μVRMS •总90μA的低静态电流 •高PSRR，到85分贝@1KHZ •小于30μs的导通时间瓦特/ CBYP=0.01μF •高输出精度： - ±1.0％的初始精度 - 温度的±2.0％ •热关断保护 •电流限制保护 •蜂窝电话 •掌上电脑 •光纤模块 •便携式电子产品 •笔记本电脑 •音频编解码器电源 |
