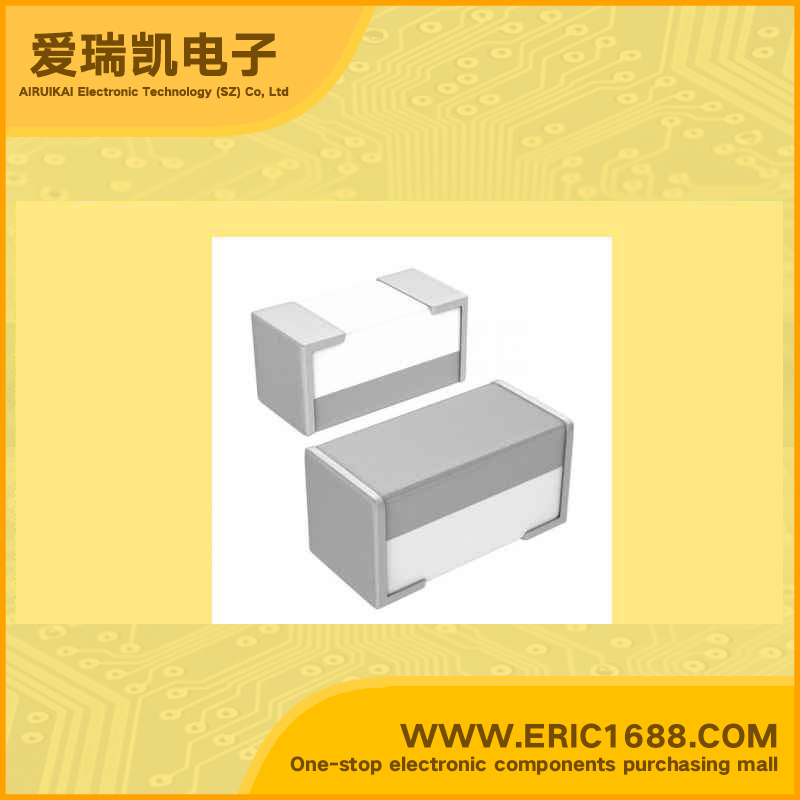

low power inductor MLG0603S5N1STD08 5.1nH 0210-5N1
| 电感值 Inductance | 5.1nH |
| 误差 Tolerance | ±0.2nH |
| 额定电流 Current Rating | 250mA |
| 饱和电流 Current - Saturation | |
| 不同频率时的Q值 Q @ Frequency | 5 @ 100MHz |
| 自振谐频率SRF Frequency - Self Resonant | 4.5GHz |
| DC电阻DCR DC Resistance (DCR) | 0.45Ω/Ohm |
| 屏蔽 Shielding | 无屏蔽 Unshielded |
| Description & Applications | MLG Series MLG0603S FEATURES • Inductance values are supported from 0.3 to 180nH. • Advanced monolithic structure is formed using a multilayering and sintering process with ceramic and conductive materials for high-frequency. • The products contain no lead and also support lead-free soldering. • It is a product conforming to RoHS directive. |
| 描述与应用 | MLG系列MLG0603S 特点 •电感值从0.3到180NH。 •产品中不含铅，支持无铅焊接。 |
