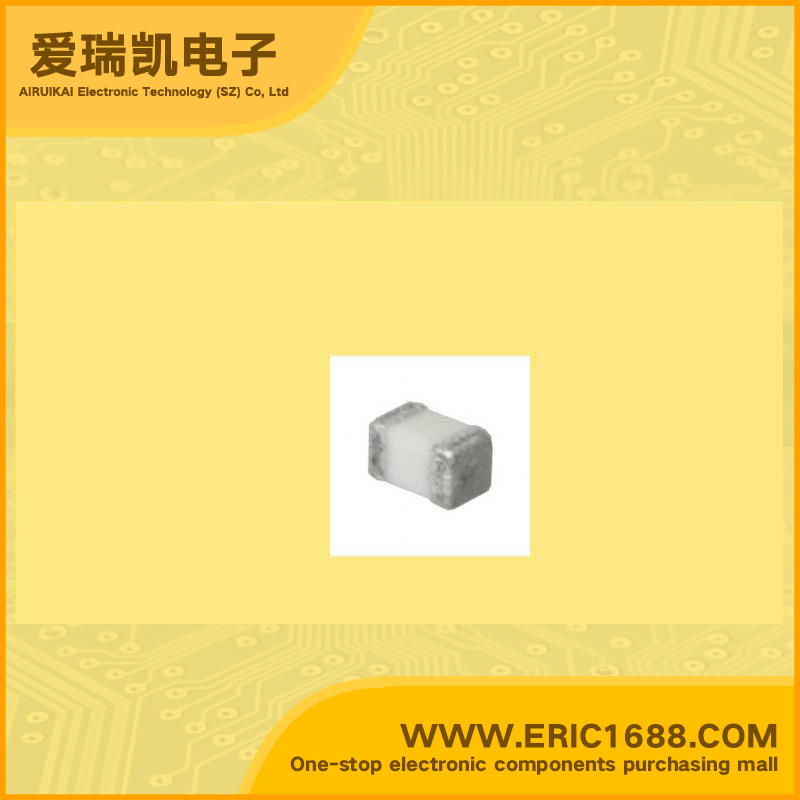

low power inductor MLK0603L15NJT 15nH 0201-12N

Hot selling goods

Product description
电感值
Inductance
15nH
误差
Tolerance
±5%
额定电流
Current Rating
150mA
饱和电流
Current - Saturation
不同频率时的Q值
Q @ Frequency
6 @ 300MHz
自振谐频率SRF
Frequency - Self Resonant
4.5GHz
DC电阻DCR
DC Resistance (DCR)
1.10Ω/Ohm
屏蔽
Shielding
无屏蔽 Unshielded
Description & ApplicationsMLK Series MLK0603 FEATURES • Inductance values are supported from 1 to 33nH. • With the adoption of a giga-spiral laminated structure, self-resonant frequency higher than that of the MLG structure can be obtained, while the decrease of Q in the GHz band is limited. • Advanced monolithic structure is formed using a multilayering and sintering process with ceramic and conductive materials for high-frequency. • There is no directivity. • The products contain no lead and also support lead-free soldering. • It is a product conforming to RoHS directive.
描述与应用MLK系列MLK0603 特点 •电感值从1到33NH。 •产品中不含铅,支持无铅焊接。 •它是一个符合RoHS指令的产品。
